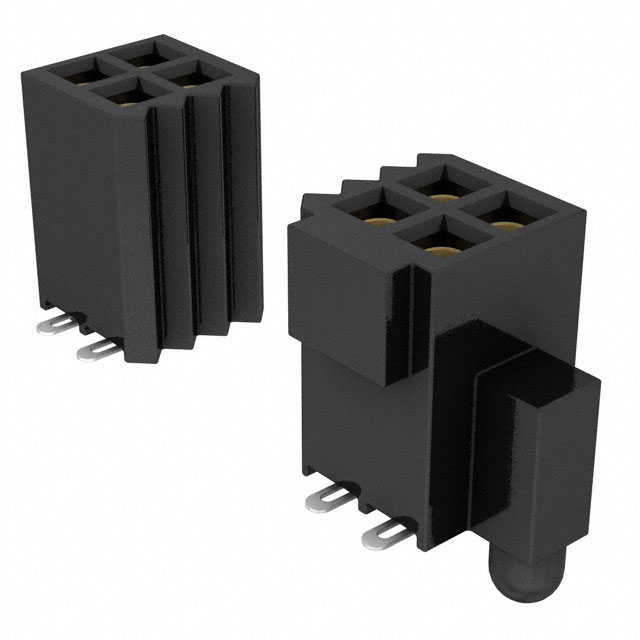

SFC-110-T2-L-D-A

Active

Samtec Inc.

CONN RCPT 20POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFSD Series Other Related Documents 03 SFC-105-T2-F-D Datasheet 02 +2

SFC-110-T2-L-D-A

Active

Samtec Inc.

CONN RCPT 20POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsSFSD Series Other Related Documents 03 SFC-105-T2-F-D Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFC-110-T2-L-D-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC

SFC-110 Series

Part	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Termination	Pitch - Mating	Pitch - Mating	Style	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Fastening Type	Voltage Rating	Number of Positions Loaded	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Mounting Type	Contact Finish - Mating	Contact Shape	Insulation Material
Samtec Inc. SFC-110-T1-F-D-A-K	Tin	-55 °C	125 °C	Female Socket	Receptacle	0.12 in	3.05 mm	Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	3 µin	0.076 µm	Board Guide Pick and Place	Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Through Hole	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T1-L-D	Tin	-55 °C	125 °C	Female Socket	Receptacle	0.12 in	3.05 mm	Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	10 çin	0.25 çm		Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Through Hole	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T2-L-D-K	Tin	-55 °C	125 °C	Female Socket	Receptacle			Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	10 çin	0.25 çm	Pick and Place	Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Surface Mount	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T2-FM-D-A-TR	Tin	-55 °C	125 °C	Female Socket	Receptacle			Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	3 µin	0.076 µm	Board Guide	Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Surface Mount	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T1-LM-D	Tin	-55 °C	125 °C	Female Socket	Receptacle	0.12 in	3.05 mm	Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	10 çin	0.25 çm		Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Through Hole	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T2-LM-D-A-K	Tin	-55 °C	125 °C	Female Socket	Receptacle			Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	10 çin	0.25 çm	Board Guide Pick and Place	Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Surface Mount	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T2-FM-D-K-TR	Tin	-55 °C	125 °C	Female Socket	Receptacle			Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	3 µin	0.076 µm	Pick and Place	Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Surface Mount	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T2-L-D-A	Tin	-55 °C	125 °C	Female Socket	Receptacle			Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	10 çin	0.25 çm	Board Guide	Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Surface Mount	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T2-LM-D-K-TR	Tin	-55 °C	125 °C	Female Socket	Receptacle			Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	10 çin	0.25 çm	Pick and Place	Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Surface Mount	Gold	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-110-T1-F-D-A	Tin	-55 °C	125 °C	Female Socket	Receptacle	0.12 in	3.05 mm	Black	4.57 mm	0.18 "	20	Solder	0.05 in	1.27 mm	Board to Board Cable	Phosphor Bronze	3 µin	0.076 µm	Board Guide	Push-Pull	350 VAC	All	3.1 A	0.05 in	1.27 mm	2	Through Hole	Gold	Square	Liquid Crystal Polymer (LCP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.06
		25	$ 3.67
		50	$ 3.41
		100	$ 3.25
		500	$ 3.02

SFC-110-T2-L-D-A

Deep-Dive with AI

SFC-110-T2-L-D-A

Deep-Dive with AI

Technical Specifications

SFC-110 Series

Pricing

Description

SFC-110 Series

Documents

SFSD Series Other Related Documents 03

SFC-105-T2-F-D Datasheet 02

Datasheet

.050" Tiger Eye™ Cost-Effective Reliable Socket Strip

SFC-110 Series
