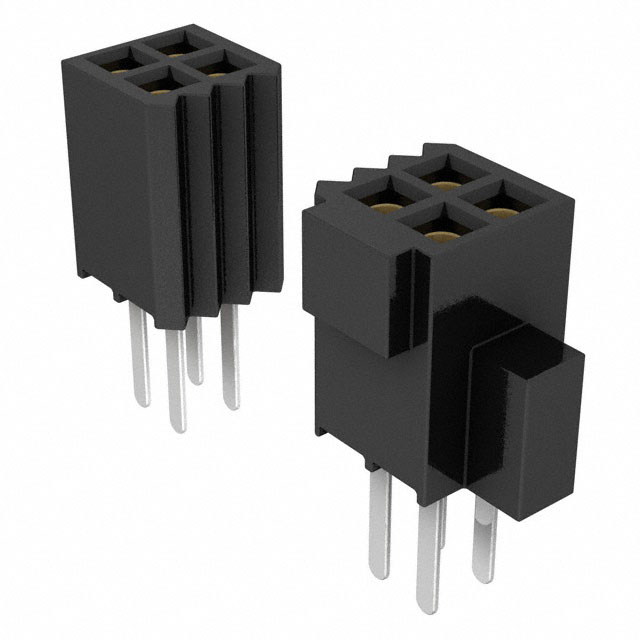

SFC-110-T1-L-D
ActiveSamtec Inc.
CONN RCPT 20POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
SFC-110-T1-L-D
ActiveSamtec Inc.
CONN RCPT 20POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFC-110-T1-L-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3.1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.57 mm |
| Insulation Height | 0.18 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 350 VAC |
SFC-110 Series
| Part | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Insulation Height | Insulation Height | Number of Positions | Termination | Pitch - Mating | Pitch - Mating | Style | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Fastening Type | Voltage Rating | Number of Positions Loaded | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Number of Rows | Mounting Type | Contact Finish - Mating | Contact Shape | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | 0.12 in | 3.05 mm | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 3 µin | 0.076 µm | Board Guide Pick and Place | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Through Hole | Gold | Square | Liquid Crystal Polymer (LCP) |
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | 0.12 in | 3.05 mm | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 10 çin | 0.25 çm | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Through Hole | Gold | Square | Liquid Crystal Polymer (LCP) | |
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 10 çin | 0.25 çm | Pick and Place | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Surface Mount | Gold | Square | Liquid Crystal Polymer (LCP) | ||
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 3 µin | 0.076 µm | Board Guide | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Surface Mount | Gold | Square | Liquid Crystal Polymer (LCP) | ||
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | 0.12 in | 3.05 mm | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 10 çin | 0.25 çm | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Through Hole | Gold | Square | Liquid Crystal Polymer (LCP) | |
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 10 çin | 0.25 çm | Board Guide Pick and Place | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Surface Mount | Gold | Square | Liquid Crystal Polymer (LCP) | ||
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 3 µin | 0.076 µm | Pick and Place | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Surface Mount | Gold | Square | Liquid Crystal Polymer (LCP) | ||
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 10 çin | 0.25 çm | Board Guide | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Surface Mount | Gold | Square | Liquid Crystal Polymer (LCP) | ||
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 10 çin | 0.25 çm | Pick and Place | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Surface Mount | Gold | Square | Liquid Crystal Polymer (LCP) | ||
Samtec Inc. | Tin | -55 °C | 125 °C | Female Socket | Receptacle | 0.12 in | 3.05 mm | Black | 4.57 mm | 0.18 " | 20 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Phosphor Bronze | 3 µin | 0.076 µm | Board Guide | Push-Pull | 350 VAC | All | 3.1 A | 0.05 in | 1.27 mm | 2 | Through Hole | Gold | Square | Liquid Crystal Polymer (LCP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.88 | |
| 25 | $ 3.51 | |||
| 50 | $ 3.26 | |||
| 100 | $ 3.10 | |||
| 500 | $ 2.89 | |||
Description
General part information
SFC-110 Series
20 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
