AVD75B-48S12B-6L

Active

ARTESYN / Advanced Energy

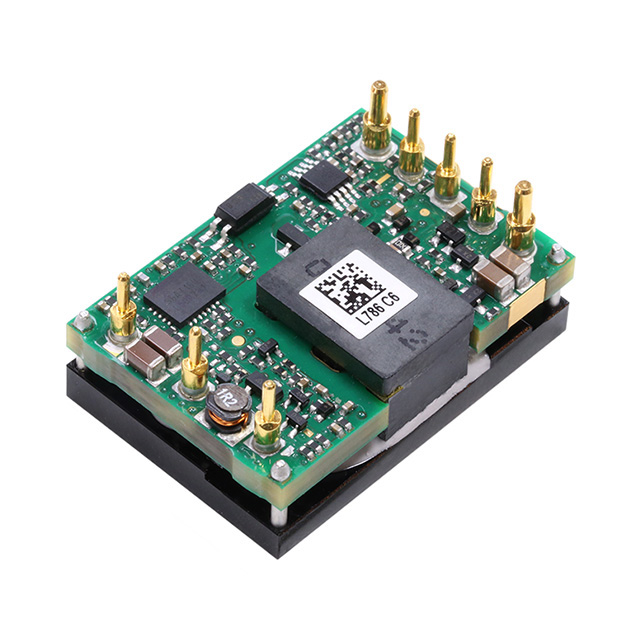

MODULE DC-DC 1-OUT 12V 6.25A 75W 8-PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AVD75B-48S12B-6L

Active

ARTESYN / Advanced Energy

MODULE DC-DC 1-OUT 12V 6.25A 75W 8-PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVD75B-48S12B-6L

Applications	ITE (Commercial)
Current - Output (Max) [Max]	6.25 A
Efficiency	93.3 %
Features	OVP, OCP, OTP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	75 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	12 mm
Size / Dimension [z]	0.47 "
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

AVD75 Series

Part	Voltage - Input (Max) [Max]	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max) [Max]	Type	Power (Watts)	Features	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Applications	Control Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]
ARTESYN / Advanced Energy AVD75-48S1V2B-6L	75 V	Through Hole	84 %	36 V	1	25 A	Isolated Module	75 W	Remote On/Off	1.2 V	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	ITE (Commercial)	Active Low Enable	8-DIP Module 1/16 Brick
ARTESYN / Advanced Energy AVD75B-48S05TL	75 V	Surface Mount	91.5 %	36 V	1	15 A	Isolated Module	75 W	OCP OTP OVP Remote On/Off	5 V	9.4 mm	0.9 "	22.9 mm	0.37 in	33 mm	1.3 "	ITE (Commercial)		Sixteenth Brick	85 °C	-40 °C	Sixteenth Brick	1.5 kV
ARTESYN / Advanced Energy AVD75B-48S12B-6L	75 V	Through Hole	93.3 %	36 V	1	6.25 A	Isolated Module	75 W	OCP OTP OVP Remote On/Off	12 V		0.9 "		0.47 "	33 mm	1.3 "	ITE (Commercial)		Sixteenth Brick	85 °C	-40 °C	Sixteenth Brick	1.5 kV	12 mm	22.9 mm
ARTESYN / Advanced Energy AVD75-48S3V3-6L	75 V	Through Hole	92 %	36 V	1	20 A	Isolated Module	75 W	Remote On/Off	3.3 V					33.02 mm		ITE (Commercial)	Active Low Enable	8-DIP Module 1/16 Brick							0.41 in	33 mm	0.9 in	22.9 mm	10.5 mm
ARTESYN / Advanced Energy AVD75B-48S12-6L	75 V	Through Hole	93.3 %	36 V	1	6.25 A	Isolated Module	75 W	OCP OTP OVP Remote On/Off	12 V	9.2 mm	0.9 "	22.9 mm	0.36 in	33 mm	1.3 "	ITE (Commercial)		Sixteenth Brick	85 °C	-40 °C	Sixteenth Brick	1.5 kV
ARTESYN / Advanced Energy AVD75-48S3V3P-6L	75 V	Through Hole	92 %	36 V	1	20 A	Isolated Module	75 W	Remote On/Off	3.3 V					33.02 mm		ITE (Commercial)	Active High Enable	8-DIP Module 1/16 Brick							0.41 in	33 mm	0.9 in	22.9 mm	10.5 mm
ARTESYN / Advanced Energy AVD75-48S3V3B-6L	75 V	Through Hole	92 %	36 V	1	20 A	Isolated Module	75 W	Remote On/Off	3.3 V	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	ITE (Commercial)	Active Low Enable	8-DIP Module 1/16 Brick
ARTESYN / Advanced Energy AVD75-48S3V3PB-6L	75 V	Through Hole	92 %	36 V	1	20 A	Isolated Module	75 W	Remote On/Off	3.3 V	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	ITE (Commercial)	Active High Enable	8-DIP Module 1/16 Brick
ARTESYN / Advanced Energy AVD75B-48S12TL	75 V	Surface Mount	93.3 %	36 V	1	6.25 A	Isolated Module	75 W	OCP OTP OVP Remote On/Off	12 V	9.4 mm	0.9 "	22.9 mm	0.37 in	33 mm	1.3 "	ITE (Commercial)		Sixteenth Brick	85 °C	-40 °C	Sixteenth Brick	1.5 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 39.46
		5	$ 39.15
		10	$ 38.85
		25	$ 38.24
		40	$ 36.42
		80	$ 33.39
		280	$ 32.78

Description

General part information

AVD75 Series

Isolated Module DC DC Converter 1 Output 12V 6.25A 36V - 75V Input
