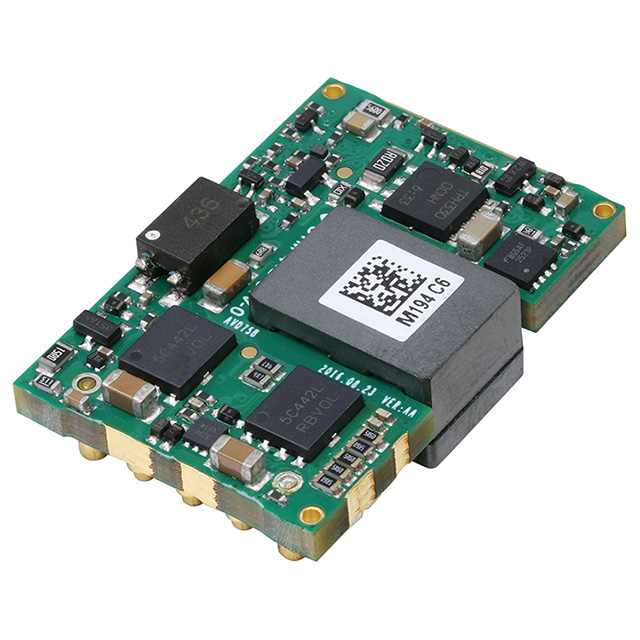

Specification	AVD75B-48S12TL

Applications	ITE (Commercial)
Current - Output (Max)	6.25 A
Efficiency	93.3 %
Features	OTP, OCP, Remote On/Off, OVP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Sixteenth Brick
Package Name	Sixteenth Brick
Power (Watts)	75 W
Size / Dimension Height	0.37 in
Size / Dimension Length	1.3 in
Size / Dimension Width	0.9 in
Type	Isolated Module
Voltage - Input (Max)	75 V
Voltage - Input (Min)	36 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	12 V

AVD75 Series

Part	Number of Outputs	Efficiency	Voltage - Input (Max)	Control Features	Applications	Voltage - Input (Min)	Package / Case	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Output 1	Features	Current - Output (Max)	Type	Mounting Type	Power (Watts)	Voltage - Isolation	Operating Temperature (Min)	Operating Temperature (Max)	Package Name
ARTESYN / Advanced Energy AVD75-48S1V2B-6L	1	84 %	75 V	Active Low Enable	ITE (Commercial)	36 V	1/16 Brick 8-DIP Module	0.5 in	1.3 in	0.9 in	1.2 V	Remote On/Off	25 A	Isolated Module	Through Hole	75 W
ARTESYN / Advanced Energy AVD75B-48S05TL	1	91.5 %	75 V		ITE (Commercial)	36 V	Sixteenth Brick	0.37 in	1.3 in	0.9 in	5 V	OCP OTP OVP Remote On/Off	15 A	Isolated Module	Surface Mount	75 W	1500 Vrns	-40 °C	85 °C	Sixteenth Brick
ARTESYN / Advanced Energy AVD75B-48S12B-6L	1	93.3 %	75 V		ITE (Commercial)	36 V	Sixteenth Brick	0.47 in	1.3 in	0.9 in	12 V	OCP OTP OVP Remote On/Off	6.25 A	Isolated Module	Through Hole	75 W	1500 Vrns	-40 °C	85 °C	Sixteenth Brick
ARTESYN / Advanced Energy AVD75-48S3V3-6L	1	92 %	75 V	Active Low Enable	ITE (Commercial)	36 V	1/16 Brick 8-DIP Module	0.41 in	1.3 in	0.9 in	3.3 V	Remote On/Off	20 A	Isolated Module	Through Hole	75 W
ARTESYN / Advanced Energy AVD75B-48S12-6L	1	93.3 %	75 V		ITE (Commercial)	36 V	Sixteenth Brick	0.36 in	1.3 in	0.9 in	12 V	OCP OTP OVP Remote On/Off	6.25 A	Isolated Module	Through Hole	75 W	1500 Vrns	-40 °C	85 °C	Sixteenth Brick
ARTESYN / Advanced Energy AVD75-48S3V3P-6L	1	92 %	75 V	Active High Enable	ITE (Commercial)	36 V	1/16 Brick 8-DIP Module	0.41 in	1.3 in	0.9 in	3.3 V	Remote On/Off	20 A	Isolated Module	Through Hole	75 W
ARTESYN / Advanced Energy AVD75-48S3V3B-6L	1	92 %	75 V	Active Low Enable	ITE (Commercial)	36 V	1/16 Brick 8-DIP Module	0.5 in	1.3 in	0.9 in	3.3 V	Remote On/Off	20 A	Isolated Module	Through Hole	75 W
ARTESYN / Advanced Energy AVD75-48S1V2TL	1	84 %	75 V	Active Low Enable	ITE (Commercial)	36 V	1/16 Brick 8-DIP Module	0.34 in	1.3 in	0.9 in	1.2 V	Remote On/Off	25 A	Isolated Module	Through Hole	75 W
ARTESYN / Advanced Energy AVD75-48S3V3PB-6L	1	92 %	75 V	Active High Enable	ITE (Commercial)	36 V	1/16 Brick 8-DIP Module	0.5 in	1.3 in	0.9 in	3.3 V	Remote On/Off	20 A	Isolated Module	Through Hole	75 W
ARTESYN / Advanced Energy AVD75B-48S12TL	1	93.3 %	75 V		ITE (Commercial)	36 V	Sixteenth Brick	0.37 in	1.3 in	0.9 in	12 V	OCP OTP OVP Remote On/Off	6.25 A	Isolated Module	Surface Mount	75 W	1500 Vrns	-40 °C	85 °C	Sixteenth Brick
