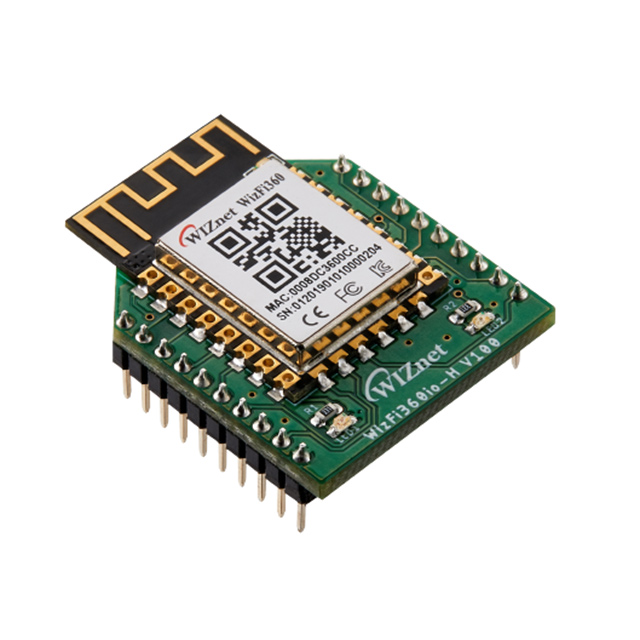

WIZFI360IO-H

Active

WIZnet

MODULE 802.11B/G/N 2.4GHZ 2000KBPS 20-PIN PACKAGE

Search across all available documentation for this part.

Active

WIZnet

MODULE 802.11B/G/N 2.4GHZ 2000KBPS 20-PIN PACKAGE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WIZFI360IO-H	WIZFI360 Series

Antenna Type	Integrated, Trace	Integrated, Trace, Antenna Not Included, I-PEX
Contents	-	Board(s)
Current - Receiving	110 mA	110 mA
Current - Transmitting	230 mA	230 mA
Data Rate	2 Mbps	2 - 72.2 Mbps
For Use With/Related Products	-	WizFi360
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.4 GHz
Frequency	-	2.4835 GHz
Function	-	WiFi
Modulation	-	DSSS, OFDM, CCK
Mounting Type	Through Hole	Surface Mount, Through Hole, Chassis Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	20-DIP Module	Module, 20-DIP Module
Platform	-	Arduino
Power - Output	-	19 dBm
Protocol	802.11b/g/n	802.11b/g/n
RF Family/Standard	WiFi	WiFi
Sensitivity	-	-95 dBm
Serial Interfaces	UART	UART
Supplied Contents	-	Board(s)
Type	-	RF, Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	-	WizFi360
Voltage - Supply [Max]	3.6 V	3.6 - 5.5 V
Voltage - Supply [Min]	3 V	3 - 4.5 V

RF TXRX MOD WIFI TH SMD

Part	Serial Interfaces	Current - Transmitting	Modulation	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Min]	Frequency [Max]	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Protocol	Package / Case	Current - Receiving	Antenna Type	Sensitivity	Data Rate	Frequency	Function	Platform	Contents	Type	Utilized IC / Part	For Use With/Related Products	Supplied Contents
WIZnet WIZFI360-PA	UART	230 mA	CCK, DSSS, OFDM	Surface Mount	3.6 V	3 V	2.4 GHz	2.4835 GHz	19 dBm	85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Integrated, Trace	-95 dBm	72.2 Mbps
WIZnet WIZFI360-CON	UART	230 mA	CCK, DSSS, OFDM	Surface Mount	3.6 V	3 V	2.4 GHz	2.4835 GHz	19 dBm	85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Antenna Not Included, I-PEX	-95 dBm	72.2 Mbps
WIZnet WIZFI360IO-H	UART	230 mA		Through Hole	3.6 V	3 V				85 °C	-40 °C	WiFi	802.11b/g/n	20-DIP Module	110 mA	Integrated, Trace		2 Mbps	2.4 GHz
WIZnet WIZFI360IO-C	UART	230 mA		Chassis Mount	5.5 V	4.5 V				85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Integrated, Trace		2 Mbps	2.4 GHz
WIZnet WIZFI360-EVB-SHIELD																				WiFi	Arduino	Board(s)	RF	WizFi360
WIZnet WIZFI360-EVB-MINI																			2.4 GHz				Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)		WizFi360	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Through Hole
