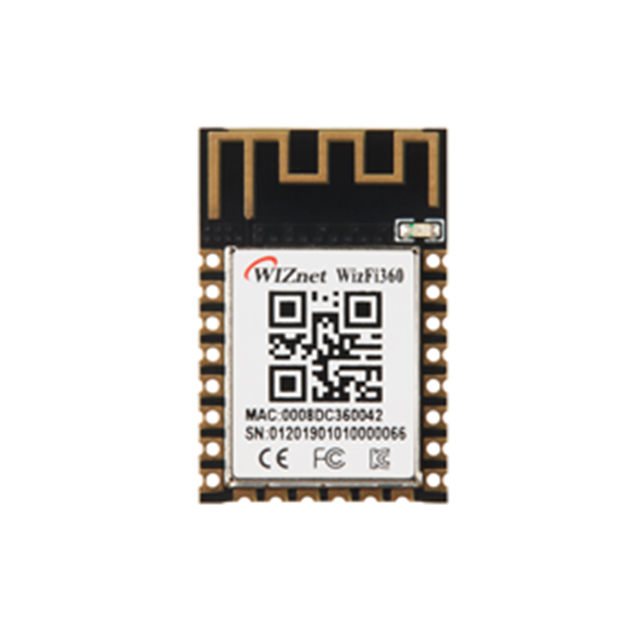

WIZFI360-PA

Active

WIZnet

RF TXRX MOD WIFI TH SMD

Search across all available documentation for this part.

Active

WIZnet

RF TXRX MOD WIFI TH SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz ~ 2.4835GHz Integrated, Trace Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	WIZFI360-PA	WIZFI360 Series

Antenna Type	Integrated, Trace	Integrated, Trace, Antenna Not Included, I-PEX
Contents	-	Board(s)
Current - Receiving	110 mA	110 mA
Current - Transmitting	230 mA	230 mA
Data Rate	72.2 Mbps	2 - 72.2 Mbps
For Use With/Related Products	-	WizFi360
Frequency	-	2.4 GHz
Frequency [Max]	2.4835 GHz	2.4835 GHz
Frequency [Min]	2.4 GHz	2.4 GHz
Function	-	WiFi
Modulation	DSSS, OFDM, CCK	DSSS, OFDM, CCK
Mounting Type	Surface Mount	Surface Mount, Through Hole, Chassis Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module, 20-DIP Module
Platform	-	Arduino
Power - Output	19 dBm	19 dBm
Protocol	802.11b/g/n	802.11b/g/n
RF Family/Standard	WiFi	WiFi
Sensitivity	-95 dBm	-95 dBm
Serial Interfaces	UART	UART
Supplied Contents	-	Board(s)
Type	-	RF, Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	-	WizFi360
Voltage - Supply [Max]	3.6 V	3.6 - 5.5 V
Voltage - Supply [Min]	3 V	3 - 4.5 V

RF TXRX MOD WIFI TH SMD

Part	Serial Interfaces	Current - Transmitting	Modulation	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Min]	Frequency [Max]	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Protocol	Package / Case	Current - Receiving	Antenna Type	Sensitivity	Data Rate	Frequency	Function	Platform	Contents	Type	Utilized IC / Part	For Use With/Related Products	Supplied Contents
WIZnet WIZFI360-PA	UART	230 mA	CCK, DSSS, OFDM	Surface Mount	3.6 V	3 V	2.4 GHz	2.4835 GHz	19 dBm	85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Integrated, Trace	-95 dBm	72.2 Mbps
WIZnet WIZFI360-CON	UART	230 mA	CCK, DSSS, OFDM	Surface Mount	3.6 V	3 V	2.4 GHz	2.4835 GHz	19 dBm	85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Antenna Not Included, I-PEX	-95 dBm	72.2 Mbps
WIZnet WIZFI360IO-H	UART	230 mA		Through Hole	3.6 V	3 V				85 °C	-40 °C	WiFi	802.11b/g/n	20-DIP Module	110 mA	Integrated, Trace		2 Mbps	2.4 GHz
WIZnet WIZFI360IO-C	UART	230 mA		Chassis Mount	5.5 V	4.5 V				85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Integrated, Trace		2 Mbps	2.4 GHz
WIZnet WIZFI360-EVB-SHIELD																				WiFi	Arduino	Board(s)	RF	WizFi360
WIZnet WIZFI360-EVB-MINI																			2.4 GHz				Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)		WizFi360	Board(s)
