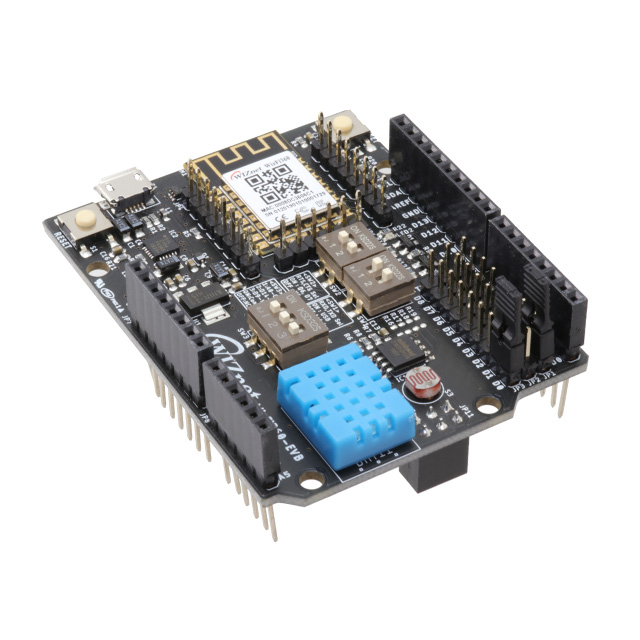

WIZFI360-EVB-SHIELD

Active

WIZnet

WIZFI360 802.11 WIRELESS LAN SHIELD BOARD

Search across all available documentation for this part.

Active

WIZnet

WIZFI360 802.11 WIRELESS LAN SHIELD BOARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.50

General part information

WizFi360 WiFi RF Arduino Platform Evaluation Expansion Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	WIZFI360-EVB-SHIELD	WIZFI360 Series

Antenna Type	-	Integrated, Trace, Antenna Not Included, I-PEX
Contents	Board(s)	Board(s)
Current - Receiving	-	110 mA
Current - Transmitting	-	230 mA
Data Rate	-	2 - 72.2 Mbps
For Use With/Related Products	-	WizFi360
Frequency	-	2.4 GHz
Frequency	-	2.4835 GHz
Frequency	-	2.4 GHz
Function	WiFi	WiFi
Modulation	-	DSSS, OFDM, CCK
Mounting Type	-	Surface Mount, Through Hole, Chassis Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module, 20-DIP Module
Platform	Arduino	Arduino
Power - Output	-	19 dBm
Protocol	-	802.11b/g/n
RF Family/Standard	-	WiFi
Sensitivity	-	-95 dBm
Serial Interfaces	-	UART
Supplied Contents	-	Board(s)
Type	RF	RF, Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	WizFi360	WizFi360
Voltage - Supply	-	3.6 - 5.5 V
Voltage - Supply	-	3 - 4.5 V

RF TXRX MOD WIFI TH SMD

Part	Serial Interfaces	Current - Transmitting	Modulation	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Min]	Frequency [Max]	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Protocol	Package / Case	Current - Receiving	Antenna Type	Sensitivity	Data Rate	Frequency	Function	Platform	Contents	Type	Utilized IC / Part	For Use With/Related Products	Supplied Contents
WIZnet WIZFI360-PA	UART	230 mA	CCK, DSSS, OFDM	Surface Mount	3.6 V	3 V	2.4 GHz	2.4835 GHz	19 dBm	85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Integrated, Trace	-95 dBm	72.2 Mbps
WIZnet WIZFI360-CON	UART	230 mA	CCK, DSSS, OFDM	Surface Mount	3.6 V	3 V	2.4 GHz	2.4835 GHz	19 dBm	85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Antenna Not Included, I-PEX	-95 dBm	72.2 Mbps
WIZnet WIZFI360IO-H	UART	230 mA		Through Hole	3.6 V	3 V				85 °C	-40 °C	WiFi	802.11b/g/n	20-DIP Module	110 mA	Integrated, Trace		2 Mbps	2.4 GHz
WIZnet WIZFI360IO-C	UART	230 mA		Chassis Mount	5.5 V	4.5 V				85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Integrated, Trace		2 Mbps	2.4 GHz
WIZnet WIZFI360-EVB-SHIELD																				WiFi	Arduino	Board(s)	RF	WizFi360
WIZnet WIZFI360-EVB-MINI																			2.4 GHz				Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)		WizFi360	Board(s)
