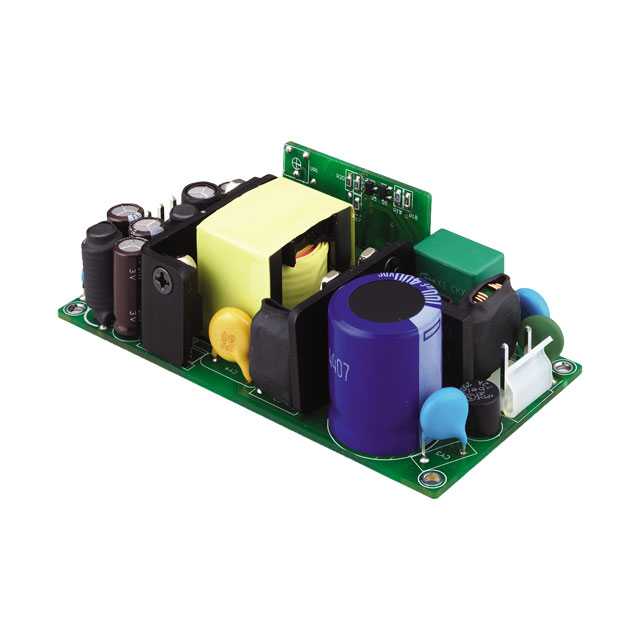

CFM60T-03

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 5V 24V -12V 62W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM60T-03

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 5V 24V -12V 62W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM60T-03

Applications	ITE (Commercial)
Approval Agency	CE, cURus, FCC, TUV
Current - Output 1	4 A
Current - Output 2	1.5 A
Current - Output 3	500 mA
Efficiency	83 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	62 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	-12 V

CFM60 Series

Part	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Approval Agency	Input Type	Size / Dimension [z]	Size / Dimension [y]	Current - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Power (Watts)	Voltage - Output 3	Current - Output 2	Voltage - Output 2	Current - Output 3
Cincon Electronics Co. LTD CFM60C150-DR	1	90 VAC	264 VAC	ITE (Commercial)	4.242 kV	15 V	86 %	110 mm	41.2 mm	2.32 in	59 mm	4.33 in	1.62 in	4 A	Universal Input	70 °C	CE cURus FCC TUV	AC
Cincon Electronics Co. LTD CFM60S300-CA	1			ITE (Commercial)	4.242 kV	30 V	86 %	117 mm		2.44 "		4.61 "	1.58 "		Universal Input	70 °C	CE cURus FCC TUV		40 mm	62 mm	2 A	Enclosed	90 VAC	264 VAC	Chassis Mount
Cincon Electronics Co. LTD CFM60C240-DR	1	90 VAC	264 VAC	ITE (Commercial)	4.242 kV	24 V	86 %	110 mm	41.2 mm	2.32 in	59 mm	4.33 in	1.62 in	2.5 A	Universal Input	70 °C	CE cURus FCC TUV	AC
Cincon Electronics Co. LTD CFM60C480-DR	1	90 VAC	264 VAC	ITE (Commercial)	4.242 kV	48 V	88 %	110 mm	41.2 mm	2.32 in	59 mm	4.33 in	1.62 in	1.25 A	Universal Input	70 °C	CE cURus FCC TUV	AC
Cincon Electronics Co. LTD CFM60S050-CA	1			ITE (Commercial)	4.242 kV	5 V	77 %	117 mm		2.44 "		4.61 "	1.58 "		Universal Input	70 °C	CE cURus FCC TUV		40 mm	62 mm	8 A	Enclosed	90 VAC	264 VAC	Chassis Mount	40 W
Cincon Electronics Co. LTD CFM60T-03	3			ITE (Commercial)	4.242 kV	5 V	83 %	101.6 mm		2 in		4 in	1.26 in		Universal Input	60 °C	CE cURus FCC TUV		32 mm	50.8 mm	4 A	Open Frame	90 VAC	264 VAC	Chassis Mount	62 W	-12 V	1.5 A	24 V	500 mA
Cincon Electronics Co. LTD CFM60T-02	3			ITE (Commercial)	4.242 kV	5 V	83 %	101.6 mm		2 in		4 in	1.26 in		Universal Input	60 °C	CE cURus FCC TUV		32 mm	50.8 mm	4 A	Open Frame	90 VAC	264 VAC	Chassis Mount	62 W	-15 V		15 V	300 mA
Cincon Electronics Co. LTD CFM60T-01	3			ITE (Commercial)	4.242 kV	5 V	83 %	101.6 mm		2 in		4 in	1.26 in		Universal Input	60 °C	CE cURus FCC TUV		32 mm	50.8 mm	4 A	Open Frame	90 VAC	264 VAC	Chassis Mount	62 W	-12 V	3 A	12 V	500 mA
Cincon Electronics Co. LTD CFM60C120-DR	1	90 VAC	264 VAC	ITE (Commercial)	4.242 kV	12 V	85 %	110 mm	41.2 mm	2.32 in	59 mm	4.33 in	1.62 in	5 A	Universal Input	70 °C	CE cURus FCC TUV	AC
Cincon Electronics Co. LTD CFM60S150-CA	1			ITE (Commercial)	4.242 kV	15 V	86 %	117 mm		2.44 "		4.61 "	1.58 "		Universal Input	70 °C	CE cURus FCC TUV		40 mm	62 mm	4 A	Enclosed	90 VAC	264 VAC	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.00
		5	$ 44.62
		10	$ 43.28
		25	$ 41.98
		50	$ 40.30
		100	$ 38.29

Description

General part information

CFM60 Series

Open Frame AC DC Converters 3 Output 5V 24V -12V 90 ~ 264 VAC Input
