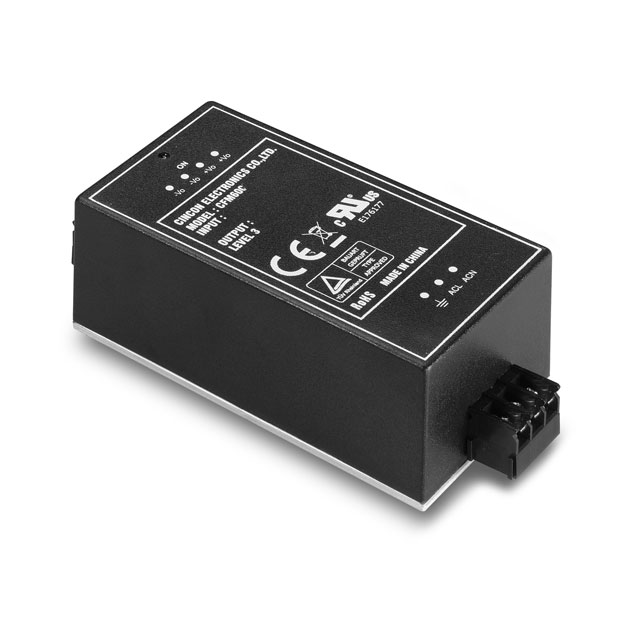

CFM60C240-DR

Active

Cincon Electronics Co. LTD

AC/DC DIN RAIL SUPPLY 24V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM60C240-DR

Active

Cincon Electronics Co. LTD

AC/DC DIN RAIL SUPPLY 24V 60W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM60C240-DR

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial)
Approval Agency	CE, cURus, FCC, TUV
Current - Output (Max) [Max]	2.5 A
Efficiency	86 %
Features	Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	110 mm
Size / Dimension [x]	4.33 in
Size / Dimension [y]	2.32 in
Size / Dimension [y]	59 mm
Size / Dimension [z]	41.2 mm
Size / Dimension [z]	1.62 in
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

CFM60 Series

Part	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Approval Agency	Input Type	Size / Dimension [z]	Size / Dimension [y]	Current - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Power (Watts)	Voltage - Output 3	Current - Output 2	Voltage - Output 2	Current - Output 3
Cincon Electronics Co. LTD CFM60C150-DR	1	90 VAC	264 VAC	ITE (Commercial)	4.242 kV	15 V	86 %	110 mm	41.2 mm	2.32 in	59 mm	4.33 in	1.62 in	4 A	Universal Input	70 °C	CE cURus FCC TUV	AC
Cincon Electronics Co. LTD CFM60S300-CA	1			ITE (Commercial)	4.242 kV	30 V	86 %	117 mm		2.44 "		4.61 "	1.58 "		Universal Input	70 °C	CE cURus FCC TUV		40 mm	62 mm	2 A	Enclosed	90 VAC	264 VAC	Chassis Mount
Cincon Electronics Co. LTD CFM60C240-DR	1	90 VAC	264 VAC	ITE (Commercial)	4.242 kV	24 V	86 %	110 mm	41.2 mm	2.32 in	59 mm	4.33 in	1.62 in	2.5 A	Universal Input	70 °C	CE cURus FCC TUV	AC
Cincon Electronics Co. LTD CFM60C480-DR	1	90 VAC	264 VAC	ITE (Commercial)	4.242 kV	48 V	88 %	110 mm	41.2 mm	2.32 in	59 mm	4.33 in	1.62 in	1.25 A	Universal Input	70 °C	CE cURus FCC TUV	AC
Cincon Electronics Co. LTD CFM60S050-CA	1			ITE (Commercial)	4.242 kV	5 V	77 %	117 mm		2.44 "		4.61 "	1.58 "		Universal Input	70 °C	CE cURus FCC TUV		40 mm	62 mm	8 A	Enclosed	90 VAC	264 VAC	Chassis Mount	40 W
Cincon Electronics Co. LTD CFM60T-03	3			ITE (Commercial)	4.242 kV	5 V	83 %	101.6 mm		2 in		4 in	1.26 in		Universal Input	60 °C	CE cURus FCC TUV		32 mm	50.8 mm	4 A	Open Frame	90 VAC	264 VAC	Chassis Mount	62 W	-12 V	1.5 A	24 V	500 mA
Cincon Electronics Co. LTD CFM60T-02	3			ITE (Commercial)	4.242 kV	5 V	83 %	101.6 mm		2 in		4 in	1.26 in		Universal Input	60 °C	CE cURus FCC TUV		32 mm	50.8 mm	4 A	Open Frame	90 VAC	264 VAC	Chassis Mount	62 W	-15 V		15 V	300 mA
Cincon Electronics Co. LTD CFM60T-01	3			ITE (Commercial)	4.242 kV	5 V	83 %	101.6 mm		2 in		4 in	1.26 in		Universal Input	60 °C	CE cURus FCC TUV		32 mm	50.8 mm	4 A	Open Frame	90 VAC	264 VAC	Chassis Mount	62 W	-12 V	3 A	12 V	500 mA
Cincon Electronics Co. LTD CFM60C120-DR	1	90 VAC	264 VAC	ITE (Commercial)	4.242 kV	12 V	85 %	110 mm	41.2 mm	2.32 in	59 mm	4.33 in	1.62 in	5 A	Universal Input	70 °C	CE cURus FCC TUV	AC
Cincon Electronics Co. LTD CFM60S150-CA	1			ITE (Commercial)	4.242 kV	15 V	86 %	117 mm		2.44 "		4.61 "	1.58 "		Universal Input	70 °C	CE cURus FCC TUV		40 mm	62 mm	4 A	Enclosed	90 VAC	264 VAC	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 68.00
		5	$ 65.96
		10	$ 63.98
		25	$ 62.06
		50	$ 59.58
		100	$ 56.60

Description

General part information

CFM60 Series

AC/DC DIN RAIL SUPPLY 24V 60W
