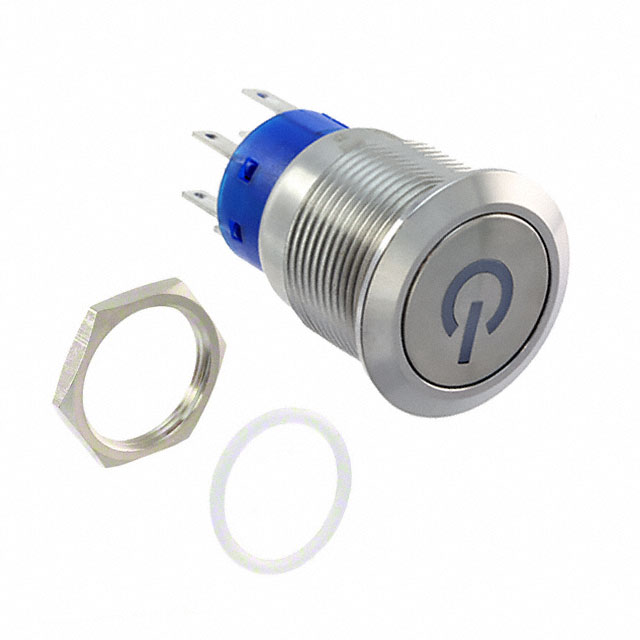

AV1921P124Q04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON DPDT 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AV1921P124Q04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON DPDT 3A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AV1921P124Q04

Actuator Marking	Power Symbol
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V

AV1921 Series

Part	Current Rating (Amps)	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - DC	Termination Style	Actuator Type	Mounting Type	Ingress Protection	Actuator Marking	Electrical Life	Color - Actuator/Cap	Mechanical Life	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Illumination Voltage (Nominal)	Illumination Type, Color
TE Connectivity Raychem Cable Protection AV1921R124R04	0.4 VA	20 V	19.2 mm	DPDT	20 V	Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C	Fixed LED Ring	On-On	24 V	LED White
TE Connectivity Raychem Cable Protection AV1921E612R04	0.4 VA	20 V	19.2 mm	DPDT	20 V	Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	12 VDC	Green LED
TE Connectivity Raychem Cable Protection AV1921R124Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C	Fixed LED Ring	On-On	24 V	LED White
TE Connectivity Raychem Cable Protection AV1921E312Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	12 VDC	LED Red
TE Connectivity Raychem Cable Protection AV1921E624Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	24 V	Green LED
TE Connectivity Raychem Cable Protection AV1921D312Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C	Spot LED	On-On	12 VDC	LED Red
TE Connectivity Raychem Cable Protection AV1921E712Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	12 VDC	Blue LED
TE Connectivity Raychem Cable Protection AV1921R724Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C	Fixed LED Ring	On-On	24 V	Blue LED
TE Connectivity Raychem Cable Protection AV1921E724Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	24 V	Blue LED
TE Connectivity Raychem Cable Protection AV1921P124Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	Power Symbol	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	24 V	LED White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 21.15
		10	$ 19.21
		25	$ 18.35
		40	$ 17.38
		100	$ 16.73
		300	$ 15.65
		500	$ 13.36

Description

General part information

AV1921 Series

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
