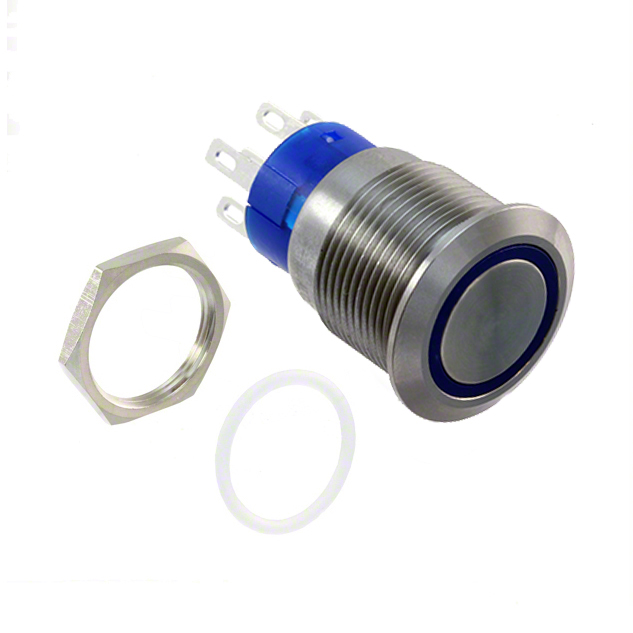

SWITCH PUSHBUTTON DPDT 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

AV1921E712Q04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON DPDT 3A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AV1921E712Q04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V

AV1921 Series

Part	Current Rating (Amps)	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - DC	Termination Style	Actuator Type	Mounting Type	Ingress Protection	Actuator Marking	Electrical Life	Color - Actuator/Cap	Mechanical Life	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Illumination Voltage (Nominal)	Illumination Type, Color
TE Connectivity Raychem Cable Protection AV1921R124R04	0.4 VA	20 V	19.2 mm	DPDT	20 V	Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C	Fixed LED Ring	On-On	24 V	LED White
TE Connectivity Raychem Cable Protection AV1921E612R04	0.4 VA	20 V	19.2 mm	DPDT	20 V	Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	12 VDC	Green LED
TE Connectivity Raychem Cable Protection AV1921R124Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C	Fixed LED Ring	On-On	24 V	LED White
TE Connectivity Raychem Cable Protection AV1921E312Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	12 VDC	LED Red
TE Connectivity Raychem Cable Protection AV1921E624Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	24 V	Green LED
TE Connectivity Raychem Cable Protection AV1921D312Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C	Spot LED	On-On	12 VDC	LED Red
TE Connectivity Raychem Cable Protection AV1921E712Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	12 VDC	Blue LED
TE Connectivity Raychem Cable Protection AV1921R724Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C	Fixed LED Ring	On-On	24 V	Blue LED
TE Connectivity Raychem Cable Protection AV1921E724Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	24 V	Blue LED
TE Connectivity Raychem Cable Protection AV1921P124Q04	3 A	250 V	19.2 mm	DPDT		Solder Lug	Button Flush Round	Panel Mount Front	IP67 - Dust Tight Waterproof	Power Symbol	50000 Cycles	Silver	500000 Cycles	Anti-Vandal Illuminated	55 °C	-20 C		On-On	24 V	LED White
