3-100-987

Active

SCHURTER Inc.

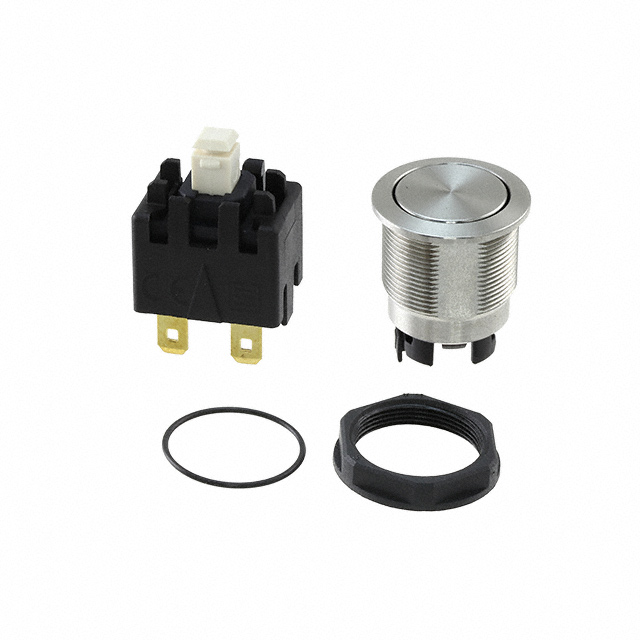

SWITCH PUSHBUTTON SPST 16A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMSM LA Series Datasheet

3-100-987

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 16A 250V

Deep-Dive with AI

DocumentsMSM LA Series Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.31
		50	$ 16.74

Description

General part information

3-100 Series

Pushbutton Switch SPST Anti-Vandal Panel Mount, Front

Documents

Technical documentation and resources

MSM LA Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-100-987	3-100 Series

Accomodates a Fuse	-	False
Actuator Marking	No Marking	No Marking, Power Symbol
Actuator Type	Round, Button	Round, Button, Flush
Approval Agency	-	CQC, cURus, ENEC, CSA, CCC, UL, VDE
Circuit	SPST	SPST, SPDT, DPST
Color - Actuator/Cap	Silver	Silver, Clear
Connector Style	-	IEC 320-C14, IEC 320-2-2/F
Connector Type	-	Male Blades, Receptacle, Receptacle, Female Sockets
Current Rating - Appliance Inlet	-	10 A
Current Rating - Filter	-	10 A
Current Rating (Amps)	16 A	5 - 16 A
Electrical Life	20000 Steps	20000 - 200000 Steps
Features	-	Shielded, Light Pipe, V-Lock Notch
Filter Type	-	Filtered (EMI, RFI) - Commercial, Unfiltered - Commercial
Illumination Type, Color	-	LED, Green, Blue, Red
Illumination Voltage (Nominal)	-	24 V
Ingress Protection	IP64 - Dust Tight, Water Resistant	IP40, IP64 - Dust Tight, Water Resistant
Material Flammability Rating	-	UL94 V-0
Mechanical Life	100000 Cycles	100000 - 1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Flange, Snap-In, Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-25 - -20 C
Panel Cutout Dimensions	-	21.5 - 24.9 mm
Panel Cutout Dimensions	-	29 - 32.5 mm
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 - 22.1 mm
Panel Thickness	-	1.7 - 8 mm
Panel Thickness	-	0.067 - 0.315 in
Switch Function	Off-On	Off-On, On-Mom
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm), Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - DC	30 V	30 V

3-100 Series

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Filter Type	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Ingress Protection	Panel Thickness	Panel Thickness	Features	Mounting Type	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Connector Style	Connector Type	Current Rating - Filter	Approval Agency	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Actuator Marking	Type	Electrical Life	Mechanical Life	Actuator Type	Voltage Rating - AC	Circuit	Termination Style	Illumination Voltage (Nominal)	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]
SCHURTER Inc. 3-100-776	Filtered (EMI, RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	250 VAC	IP40	8 mm	0.315 in	Shielded	Flange, Panel Mount	UL94 V-0	21.5 mm	29 mm	10 A	IEC 320-C14	Male Blades, Receptacle	10 A	CQC, cURus, ENEC
SCHURTER Inc. 3-100-403	Unfiltered - Commercial				250 VAC		1.7 mm	0.067 in	Light Pipe, V-Lock Notch	Panel Mount, Snap-In	UL94 V-0	24.9 mm	32.5 mm	10 A	IEC 320-2-2/F	Receptacle, Female Sockets		CCC, CSA, ENEC, UL, VDE
SCHURTER Inc. 3-100-991						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On	Green, LED	19.1 mm	No Marking	Anti-Vandal, Illuminated	20000 Steps	100000 Cycles	Button, Round	250 V	SPST	Quick Connect - 0.187" (4.7mm)	24 V	Silver	85 °C	-20 C
SCHURTER Inc. 3-100-143						IP40				Panel Mount, Front										5 A	On-Mom	Green, LED	22.1 mm	Power Symbol	Anti-Vandal, Illuminated	200000 Cycles	1500000 Cycles	Button, Flush, Round	125 V	SPDT	Quick Connect - 0.110" (2.8mm)	24 V	Clear	85 °C	-25 °C
SCHURTER Inc. 3-100-999						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On	Blue, LED	19.1 mm	No Marking	Anti-Vandal, Illuminated	20000 Steps	100000 Cycles	Button, Round	250 V	DPST	Quick Connect - 0.187" (4.7mm)	24 V	Silver	85 °C	-20 C
SCHURTER Inc. 3-100-405	Unfiltered - Commercial				250 VAC		1.7 mm	0.067 in	Light Pipe, V-Lock Notch	Panel Mount, Snap-In	UL94 V-0	24.9 mm	32.5 mm	10 A	IEC 320-2-2/F	Receptacle, Female Sockets		CCC, CSA, ENEC, UL, VDE
SCHURTER Inc. 3-100-990						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On	LED, Red	19.1 mm	No Marking	Anti-Vandal, Illuminated	20000 Steps	100000 Cycles	Button, Round	250 V	SPST	Quick Connect - 0.187" (4.7mm)	24 V	Silver	85 °C	-20 C
SCHURTER Inc. 3-100-912						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On	Green, LED	22.1 mm	No Marking	Anti-Vandal, Illuminated	20000 Steps	100000 Cycles	Button, Round	250 V	DPST	Quick Connect - 0.187" (4.7mm)	24 V	Silver	85 °C	-20 C
SCHURTER Inc. 3-100-987						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On		19.1 mm	No Marking	Anti-Vandal	20000 Steps	100000 Cycles	Button, Round	250 V	SPST	Quick Connect - 0.187" (4.7mm)		Silver	85 °C	-20 C
