3-100-990

Active

SCHURTER Inc.

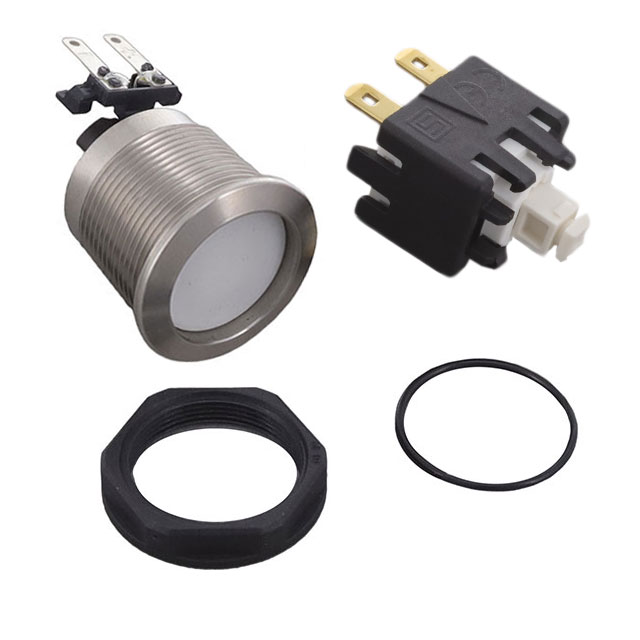

SWITCH PUSHBUTTON SPST 16A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MSM LA Series

3-100-990

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 16A 250V

Deep-Dive with AI

DocumentsDatasheet MSM LA Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-100-990	3-100 Series

Accomodates a Fuse	-	False
Actuator Marking	No Marking	No Marking, Power Symbol
Actuator Type	Round, Button	Round, Button, Flush
Approval Agency	-	CQC, cURus, ENEC, CSA, CCC, UL, VDE
Circuit	SPST	SPST, SPDT, DPST
Color - Actuator/Cap	Silver	Silver, Clear
Connector Style	-	IEC 320-C14, IEC 320-2-2/F
Connector Type	-	Male Blades, Receptacle, Receptacle, Female Sockets
Current Rating - Appliance Inlet	-	10 A
Current Rating - Filter	-	10 A
Current Rating (Amps)	16 A	5 - 16 A
Electrical Life	20000 Steps	20000 - 200000 Steps
Features	-	Shielded, Light Pipe, V-Lock Notch
Filter Type	-	Filtered (EMI, RFI) - Commercial, Unfiltered - Commercial
Illumination Type, Color	Red, LED	LED, Green, Blue, Red
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP64 - Dust Tight, Water Resistant	IP40, IP64 - Dust Tight, Water Resistant
Material Flammability Rating	-	UL94 V-0
Mechanical Life	100000 Cycles	100000 - 1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Flange, Snap-In, Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-25 - -20 C
Panel Cutout Dimensions	-	21.5 - 24.9 mm
Panel Cutout Dimensions	-	29 - 32.5 mm
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 - 22.1 mm
Panel Thickness	-	1.7 - 8 mm
Panel Thickness	-	0.067 - 0.315 in
Switch Function	Off-On	Off-On, On-Mom
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm), Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - DC	30 V	30 V

3-100 Series

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Filter Type	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Ingress Protection	Panel Thickness	Panel Thickness	Features	Mounting Type	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Connector Style	Connector Type	Current Rating - Filter	Approval Agency	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Actuator Marking	Type	Electrical Life	Mechanical Life	Actuator Type	Voltage Rating - AC	Circuit	Termination Style	Illumination Voltage (Nominal)	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]
SCHURTER Inc. 3-100-776	Filtered (EMI, RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	250 VAC	IP40	8 mm	0.315 in	Shielded	Flange, Panel Mount	UL94 V-0	21.5 mm	29 mm	10 A	IEC 320-C14	Male Blades, Receptacle	10 A	CQC, cURus, ENEC
SCHURTER Inc. 3-100-403	Unfiltered - Commercial				250 VAC		1.7 mm	0.067 in	Light Pipe, V-Lock Notch	Panel Mount, Snap-In	UL94 V-0	24.9 mm	32.5 mm	10 A	IEC 320-2-2/F	Receptacle, Female Sockets		CCC, CSA, ENEC, UL, VDE
SCHURTER Inc. 3-100-991						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On	Green, LED	19.1 mm	No Marking	Anti-Vandal, Illuminated	20000 Steps	100000 Cycles	Button, Round	250 V	SPST	Quick Connect - 0.187" (4.7mm)	24 V	Silver	85 °C	-20 C
SCHURTER Inc. 3-100-143						IP40				Panel Mount, Front										5 A	On-Mom	Green, LED	22.1 mm	Power Symbol	Anti-Vandal, Illuminated	200000 Cycles	1500000 Cycles	Button, Flush, Round	125 V	SPDT	Quick Connect - 0.110" (2.8mm)	24 V	Clear	85 °C	-25 °C
SCHURTER Inc. 3-100-999						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On	Blue, LED	19.1 mm	No Marking	Anti-Vandal, Illuminated	20000 Steps	100000 Cycles	Button, Round	250 V	DPST	Quick Connect - 0.187" (4.7mm)	24 V	Silver	85 °C	-20 C
SCHURTER Inc. 3-100-405	Unfiltered - Commercial				250 VAC		1.7 mm	0.067 in	Light Pipe, V-Lock Notch	Panel Mount, Snap-In	UL94 V-0	24.9 mm	32.5 mm	10 A	IEC 320-2-2/F	Receptacle, Female Sockets		CCC, CSA, ENEC, UL, VDE
SCHURTER Inc. 3-100-990						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On	LED, Red	19.1 mm	No Marking	Anti-Vandal, Illuminated	20000 Steps	100000 Cycles	Button, Round	250 V	SPST	Quick Connect - 0.187" (4.7mm)	24 V	Silver	85 °C	-20 C
SCHURTER Inc. 3-100-912						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On	Green, LED	22.1 mm	No Marking	Anti-Vandal, Illuminated	20000 Steps	100000 Cycles	Button, Round	250 V	DPST	Quick Connect - 0.187" (4.7mm)	24 V	Silver	85 °C	-20 C
SCHURTER Inc. 3-100-987						IP64 - Dust Tight, Water Resistant				Panel Mount, Front									30 V	16 A	Off-On		19.1 mm	No Marking	Anti-Vandal	20000 Steps	100000 Cycles	Button, Round	250 V	SPST	Quick Connect - 0.187" (4.7mm)		Silver	85 °C	-20 C
