142250

Active

Amphenol RF

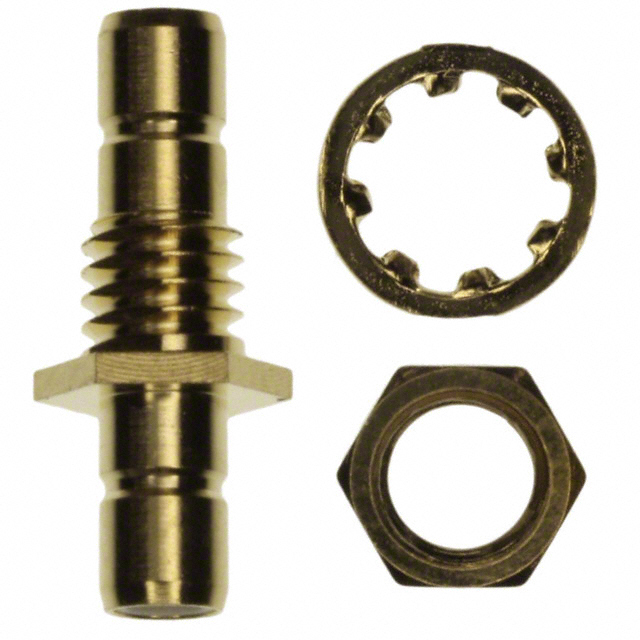

CONN ADAPT JACK-JACK SMB 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

142250

Active

Amphenol RF

CONN ADAPT JACK-JACK SMB 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	142250

Adapter Series	SMB to SMB
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMB Jack, Male Pin
Convert To (Adapter End)	Male Pin, SMB Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

1422 Series

Part	Mounting Type	Body Finish	Body Material	Connector Type	Connector Style	Voltage Rating	Includes	Cable Group	Mating Cycles	Fastening Type	Center Contact Material	Number of Ports	Impedance	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Dielectric Material	Insertion Loss	Mounting Feature	Housing Color	Center Contact Plating	Frequency - Max [Max]	Cable Group	Center Gender	Convert To (Adapter End)	Adapter Type	Conversion Type	Style	Adapter Series	Convert From (Adapter End)
Amphenol RF 142256	Panel Mount Flange (2 Hole)	Gold	Brass	Female Socket Plug	SMB
Amphenol RF 142231		Gold	Brass	Jack Male Pin	SMB	335 V	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut	178A 178B 196 196A M17/93-RG178 RG-178	500	Snap-On	Brass	1	50 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.3 dB	Bulkhead - Front Side Nut	Gold	Gold	4 GHz
Amphenol RF 142229	Free Hanging (In-Line)	Gold	Brass	Female Socket Plug	SMB	335 V		178A 178B 196 196A M17/93-RG178 RG-178	500	Snap-On	Beryllium Copper	1	50 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.3 dB		Gold	Gold	4 GHz
Amphenol RF 142288	Free Hanging (In-Line) Right Angle	Nickel	Brass	Female Socket Plug	SMB	335 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	178A 178B 196 196A M17/93-RG178 RG-178	500	Snap-On	Beryllium Copper	1	50 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.6 dB		Silver	Gold	3 GHz
Amphenol RF 142225	Free Hanging (In-Line)	Gold	Brass	Jack Male Pin	SMB	335 V		Semi Rigid	500	Snap-On	Brass	1	50 Ohms	Solder	-65 ░C	165 °C	Solder	Polytetrafluoroethylene (PTFE)	0.3 dB		Gold	Gold	4 GHz	0.047 in
Amphenol RF 142271	Panel Mount Bulkhead - Front Side Nut	Nickel	Brass
Amphenol RF 142251	Free Hanging (In-Line) Right Angle	Nickel	Brass	Jack Male Pin	SMB	335 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	Snap-On	Brass	1	50 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.6 dB		Silver	Gold	4 GHz
Amphenol RF 142244	Free Hanging (In-Line)	Gold	Brass							Snap-On	Brass		50 Ohms		-65 ░C	165 °C		Polytetrafluoroethylene (PTFE)				Gold	4 GHz		Male to Male	Male Pin SMB Jack	Jack to Jack	Same Series	Straight	SMB to SMB	SMB Jack Male Pin
Amphenol RF 142250		Gold	Brass				1 Connector 1 Lockwasher 1 Nut			Snap-On	Brass		50 Ohms		-65 ░C	165 °C		Polytetrafluoroethylene (PTFE)		Bulkhead		Gold	4 GHz		Male to Male	Male Pin SMB Jack	Jack to Jack	Same Series	Straight	SMB to SMB	SMB Jack Male Pin
Amphenol RF 142286	Free Hanging (In-Line) Right Angle	Gold	Brass	Female Socket Plug	SMB	335 V	1 Connector 1 End Cap 1 Ferrule	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	500	Snap-On	Beryllium Copper	1	75 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.6 dB		Gold	Gold	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.99
		10	$ 7.23
		25	$ 6.83
		50	$ 6.66
		100	$ 6.33
		250	$ 5.66
		500	$ 5.33
		1000	$ 4.66

Description

General part information

1422 Series

Adapter Coaxial Connector SMB Jack, Male Pin To SMB Jack, Male Pin 50 Ohms
