142231
ActiveAmphenol RF
CONN SMB JACK STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
142231
ActiveAmphenol RF
CONN SMB JACK STR 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 142231 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 178B, RG-178, 196A, M17/93-RG178, 196, 178A |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |

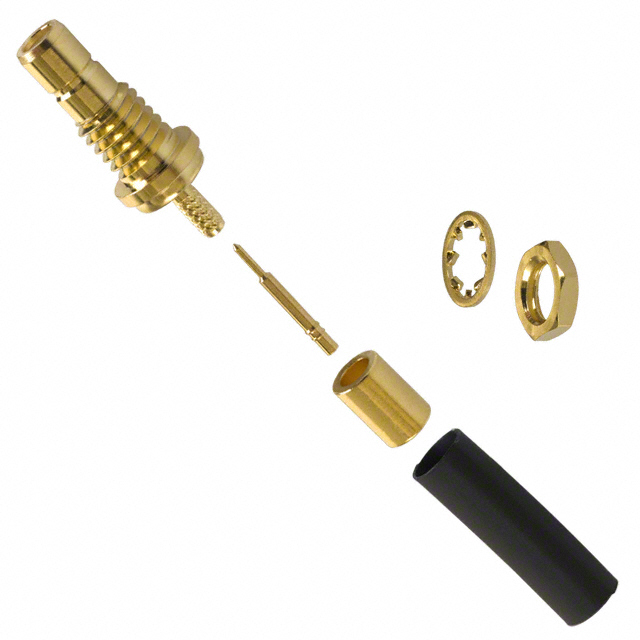

| Includes | 1 Nut, 1 Heat Shrink, 1 Ferrule, 1 Contact, 1 Connector, 1 Lockwasher |
| Insertion Loss | 0.3 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
1422 Series
| Part | Mounting Type | Body Finish | Body Material | Connector Type | Connector Style | Voltage Rating | Includes | Cable Group | Mating Cycles | Fastening Type | Center Contact Material | Number of Ports | Impedance | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Dielectric Material | Insertion Loss | Mounting Feature | Housing Color | Center Contact Plating | Frequency - Max [Max] | Cable Group | Center Gender | Convert To (Adapter End) | Adapter Type | Conversion Type | Style | Adapter Series | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Panel Mount Flange (2 Hole) | Gold | Brass | Female Socket Plug | SMB | ||||||||||||||||||||||||||
Amphenol RF | Gold | Brass | Jack Male Pin | SMB | 335 V | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut | 178A 178B 196 196A M17/93-RG178 RG-178 | 500 | Snap-On | Brass | 1 | 50 Ohms | Solder | -65 ░C | 165 °C | Crimp | Polytetrafluoroethylene (PTFE) | 0.3 dB | Bulkhead - Front Side Nut | Gold | Gold | 4 GHz | |||||||||
Amphenol RF | Free Hanging (In-Line) | Gold | Brass | Female Socket Plug | SMB | 335 V | 178A 178B 196 196A M17/93-RG178 RG-178 | 500 | Snap-On | Beryllium Copper | 1 | 50 Ohms | Solder | -65 ░C | 165 °C | Crimp | Polytetrafluoroethylene (PTFE) | 0.3 dB | Gold | Gold | 4 GHz | ||||||||||
Amphenol RF | Free Hanging (In-Line) Right Angle | Nickel | Brass | Female Socket Plug | SMB | 335 V | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | 178A 178B 196 196A M17/93-RG178 RG-178 | 500 | Snap-On | Beryllium Copper | 1 | 50 Ohms | Solder | -65 ░C | 165 °C | Crimp | Polytetrafluoroethylene (PTFE) | 0.6 dB | Silver | Gold | 3 GHz | |||||||||
Amphenol RF | Free Hanging (In-Line) | Gold | Brass | Jack Male Pin | SMB | 335 V | Semi Rigid | 500 | Snap-On | Brass | 1 | 50 Ohms | Solder | -65 ░C | 165 °C | Solder | Polytetrafluoroethylene (PTFE) | 0.3 dB | Gold | Gold | 4 GHz | 0.047 in | |||||||||
Amphenol RF | Panel Mount Bulkhead - Front Side Nut | Nickel | Brass | ||||||||||||||||||||||||||||
Amphenol RF | Free Hanging (In-Line) Right Angle | Nickel | Brass | Jack Male Pin | SMB | 335 V | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 500 | Snap-On | Brass | 1 | 50 Ohms | Solder | -65 ░C | 165 °C | Crimp | Polytetrafluoroethylene (PTFE) | 0.6 dB | Silver | Gold | 4 GHz | |||||||||
Amphenol RF | Free Hanging (In-Line) | Gold | Brass | Snap-On | Brass | 50 Ohms | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | 4 GHz | Male to Male | Male Pin SMB Jack | Jack to Jack | Same Series | Straight | SMB to SMB | SMB Jack Male Pin | |||||||||||||
Amphenol RF | Gold | Brass | 1 Connector 1 Lockwasher 1 Nut | Snap-On | Brass | 50 Ohms | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Bulkhead | Gold | 4 GHz | Male to Male | Male Pin SMB Jack | Jack to Jack | Same Series | Straight | SMB to SMB | SMB Jack Male Pin | ||||||||||||
Amphenol RF | Free Hanging (In-Line) Right Angle | Gold | Brass | Female Socket Plug | SMB | 335 V | 1 Connector 1 End Cap 1 Ferrule | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | 500 | Snap-On | Beryllium Copper | 1 | 75 Ohms | Solder | -65 ░C | 165 °C | Crimp | Polytetrafluoroethylene (PTFE) | 0.6 dB | Gold | Gold | 4 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.22 | |
| 10 | $ 7.43 | |||
| 25 | $ 7.02 | |||
| 50 | $ 6.85 | |||
| 100 | $ 6.51 | |||
| 300 | $ 5.82 | |||
| 500 | $ 5.48 | |||
| 1000 | $ 4.79 | |||
Description
General part information
1422 Series
SMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder
