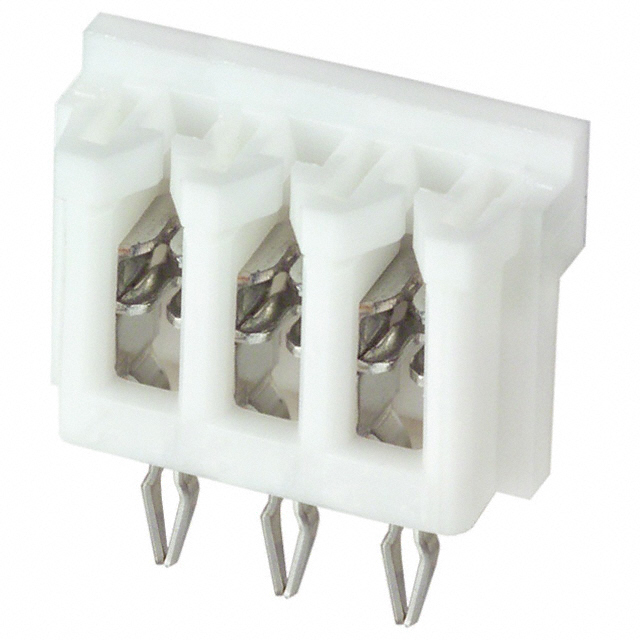

03DB-6S(LF)

Active

JST Sales America Inc.

CONN WIRE IDC 3POS 24-28AWG PCB

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN WIRE IDC 3POS 24-28AWG PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN WIRE IDC 3POS 24-28AWG PCB

Part	Mounting Type	Contact Finish	Features	Cable Termination	Number of Rows	Connector Type	Number of Positions Loaded	Color	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Board-Side Pitch	Board-Side Pitch	Cable Pitch	Cable Pitch
JST Sales America Inc. 03DB-8M(LF)	Through Hole, Press-Fit	Tin-Lead	Closed End	IDC	1	Individual Wires	All	Green	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	2.5 mm	0.098 in
JST Sales America Inc. 03DB-4K	Through Hole, Press-Fit	Tin-Lead	Closed End	IDC	1	Individual Wires	All	Black	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	2.5 mm	0.098 in
JST Sales America Inc. 03DB-6S(LF)	Through Hole, Press-Fit	Tin-Lead	Closed End	IDC	1	Individual Wires	All	White	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	2.5 mm	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.13

General part information

3 Position Individual Wires Connector White IDC 24-28 AWG, Stranded Through Hole, Press-Fit
