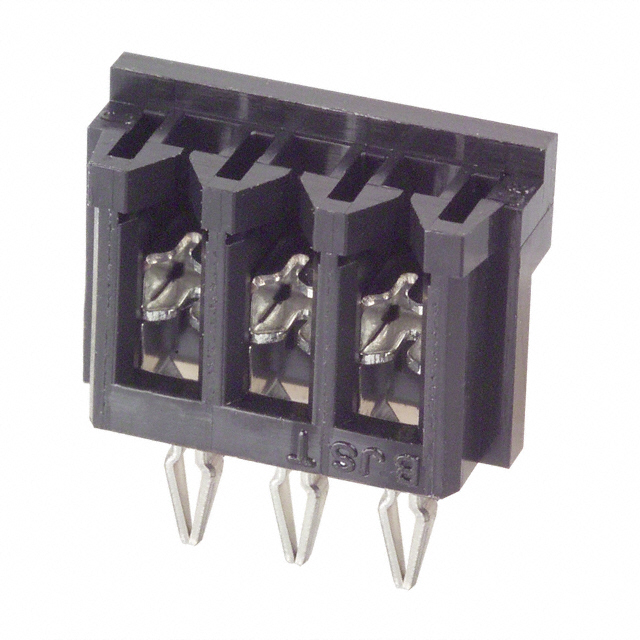

03DB-4K

Active

JST Sales America Inc.

CONN WIRE IDC 3POS 24-28AWG PCB

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN WIRE IDC 3POS 24-28AWG PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.14

General part information

3 Position Individual Wires Connector Black IDC 24-28 AWG, Stranded Through Hole, Press-Fit

Technical documentation and resources

Part	Mounting Type	Contact Finish	Features	Cable Termination	Number of Rows	Connector Type	Number of Positions Loaded	Color	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Board-Side Pitch	Board-Side Pitch	Cable Pitch	Cable Pitch
JST Sales America Inc. 03DB-8M(LF)	Through Hole, Press-Fit	Tin-Lead	Closed End	IDC	1	Individual Wires	All	Green	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	2.5 mm	0.098 in
JST Sales America Inc. 03DB-4K	Through Hole, Press-Fit	Tin-Lead	Closed End	IDC	1	Individual Wires	All	Black	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	2.5 mm	0.098 in
JST Sales America Inc. 03DB-6S(LF)	Through Hole, Press-Fit	Tin-Lead	Closed End	IDC	1	Individual Wires	All	White	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	2.5 mm	0.098 in
