30-WQFN

HD3SS460RNHR

Active
Texas Instruments

4X6-CHANNEL USB TYPE-C™ ALTERNATE MODE MUX/DEMUX

Find alt
30-WQFN

HD3SS460RNHR

Active
Texas Instruments

4X6-CHANNEL USB TYPE-C™ ALTERNATE MODE MUX/DEMUX

Find alt

Description

General part information

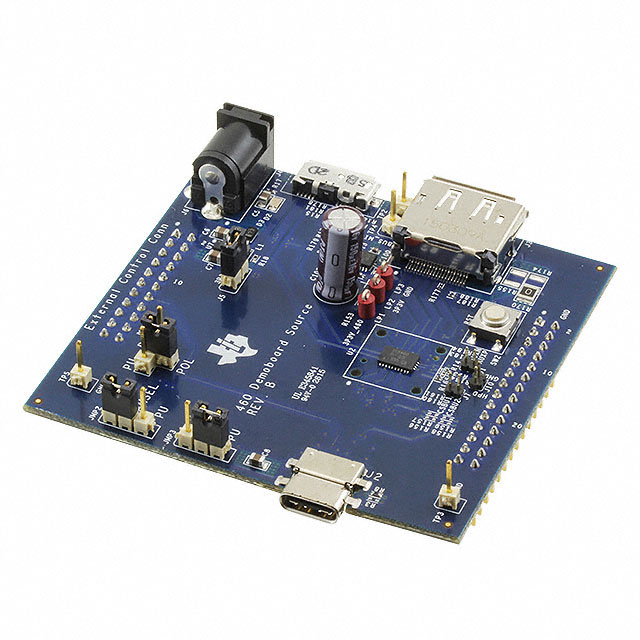

HD3SS460 Series

The HD3SS460 is a high-speed bi-directional passive switch in mux or demux configurations. Based on control pin POL the device provides switching to accommodate connector flipping. The device also provides muxing between 2Ch Data / 2Ch Video and all 4Ch Video based on control pin AMSEL.

The device also provides cross points MUX for low speed pins as needed in flippable connector implementation.

The HD3SS460 is a generic analog differential passive switch that can work for any high speed interface applications as long as it is biased at a common mode voltage range of 0-2V and has differential signaling with differential amplitude up to 1800mVpp. It employs an adaptive tracking that ensures the channel remains unchanged for entire common mode voltage range.

Technical Specifications

Parameters and characteristics for this part

SpecificationHD3SS460RNHR
-3db Bandwidth5.4 GHz
ApplicationsUSB
Demultiplexer Outputs6
FeaturesBi-Directional
Mounting TypeSurface Mount
Multiplexer Inputs4
Number of Channels1
On-State Resistance (Max)14 Ohms
Operating Temperature (Max)70 °C
Operating Temperature (Min)0 °C
Package / Case30-WFQFN Exposed Pad
Package Length4.5 mm
Package Name30-WQFN
Package Width2.5 mm
Voltage - Supply, Single (V+) (Maximum)3.6 V
Voltage - Supply, Single (V+) (Minimum)3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
