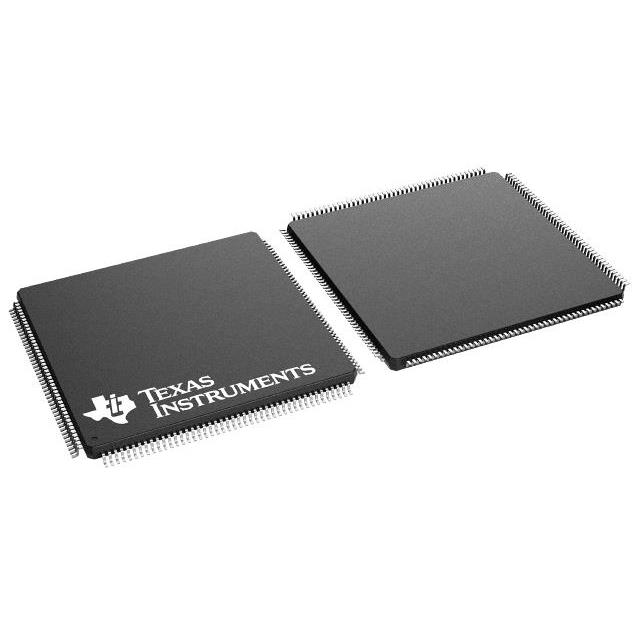

V62/05601-03ZE
ActiveC2000™ ENHANCED PRODUCT 32-BIT MCU WITH 150 MHZ, 256 KB FLASH, EMIF 176-LQFP -55 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
V62/05601-03ZE
ActiveC2000™ ENHANCED PRODUCT 32-BIT MCU WITH 150 MHZ, 256 KB FLASH, EMIF 176-LQFP -55 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | V62/05601-03ZE | SM320F2812-EP Series |
|---|---|---|
| Clock Rate | 150 MHz, 135 MHz | 135 - 150 MHz |
| Core Processor | - | C28x |
| Core Size | - | 32-Bit Single-Core |
| Data Converters | - | 12 - 16 b |
| Interface | SCI, CAN, UART, SPI, McBSP | SCI, CAN, UART, SPI, McBSP |
| Mounting Type | Surface Mount | Surface Mount |
| Non-Volatile Memory | FLASH | FLASH |
| Non-Volatile Memory | 256 MB | 256 MB |
| Number of I/O | - | 56 |
| On-Chip RAM | 36 kB | 36 kB |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 C | -55 C |
| Oscillator Type | - | Internal |
| Package / Case | 176-LQFP | 176-LQFP |
| Peripherals | - | WDT, DMA, POR, PWM |
| Program Memory Size | - | 256 KB |
| Program Memory Type | - | FLASH |
| RAM Size | - | 18 K |
| Speed | - | 150 MHz |
| Supplier Device Package | 176-LQFP (24x24) | 176-LQFP (24x24) |
| Type | Fixed Point | Fixed Point |
| Voltage - Core | 1.8 V, 1.9 V | 1.8 - 1.9 V |
| Voltage - I/O | 3.3 V | 3.3 V |
| Voltage - Supply (Vcc/Vdd) | - | 1.81 V |
| Voltage - Supply (Vcc/Vdd) | - | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Bulk | 40 | $ 48.07 | |
| Digikey | Bulk | 40 | $ 48.07 | |
| Mouser Electronics | N/A | 1 | $ 60.19 | |
| 10 | $ 56.55 | |||
| 25 | $ 54.73 | |||
| 40 | $ 48.06 | |||
| Texas Instruments | JEDEC TRAY (10+1) | 1 | $ 55.28 | |
| 100 | $ 49.13 | |||
| 250 | $ 40.39 | |||
| 1000 | $ 36.13 | |||
SM320F2812-EP Series
C2000™ Enhanced Product 32-bit MCU with 150 MHz, 256 KB Flash, EMIF
| Part | Core Size | Package / Case | Supplier Device Package | RAM Size | Data Converters | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Program Memory Type | Mounting Type | Speed | Oscillator Type | Number of I/O | Core Processor | Program Memory Size | Peripherals | Interface | Voltage - I/O | Non-Volatile Memory | Non-Volatile Memory | Clock Rate | Voltage - Core | On-Chip RAM | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments SM320F2812PGFMEPG4 | 32-Bit Single-Core | 176-LQFP | 176-LQFP (24x24) | 18 K | 12 b, 16 | 1.81 V | 2 V | -55 C | 125 °C | FLASH | Surface Mount | 150 MHz | Internal | 56 | C28x | 256 KB | DMA, POR, PWM, WDT | ||||||||
Texas Instruments V62/05601-03ZE | 176-LQFP | 176-LQFP (24x24) | -55 C | 125 °C | Surface Mount | CAN, McBSP, SCI, SPI, UART | 3.3 V | FLASH | 256 MB | 135 MHz, 150 MHz | 1.8 V, 1.9 V | 36 kB | Fixed Point | ||||||||||||
Texas Instruments SM320F2812PGFMEP | 32-Bit Single-Core | 176-LQFP | 176-LQFP (24x24) | 18 K | 12 b, 16 | 1.81 V | 2 V | -55 C | 125 °C | FLASH | Surface Mount | 150 MHz | Internal | 56 | C28x | 256 KB | DMA, POR, PWM, WDT |
Description
General part information
SM320F2812-EP Series
The SM320F2810-EP, SM320F2811-EP, SM320F2812-EP, SM320C2810-EP, SM320C2811-EP, and SM320C2812-EP devices, members of the TMS320C28x™ DSP generation, are highly integrated, high-performance solutions for demanding control applications. The functional blocks and the memory maps are described in Section 3, Functional Overview.
Throughout this document, SM320F2810-EP, SM320F2811-EP, and SM320F2812-EP are abbreviated as F2810, F2811, and F2812, respectively. F281x denotes all three Flash devices. SM320C2810-EP, SM320C2811-EP, and SM320C2812-EP are abbreviated as C2810, C2811, and C2812, respectively. C281x denotes all three ROM devices. 2810 denotes both F2810 and C2810 devices; 2811 denotes both F2811 and C2811 devices; and 2812 denotes both F2812 and C2812 devices.
The SM320F2810-EP, SM320F2811-EP, SM320F2812-EP, SM320C2810-EP, SM320C2811-EP, and SM320C2812-EP devices, members of the TMS320C28x™ DSP generation, are highly integrated, high-performance solutions for demanding control applications. The functional blocks and the memory maps are described in Section 3, Functional Overview.
