T520X108M003ATE015

Active

KEMET

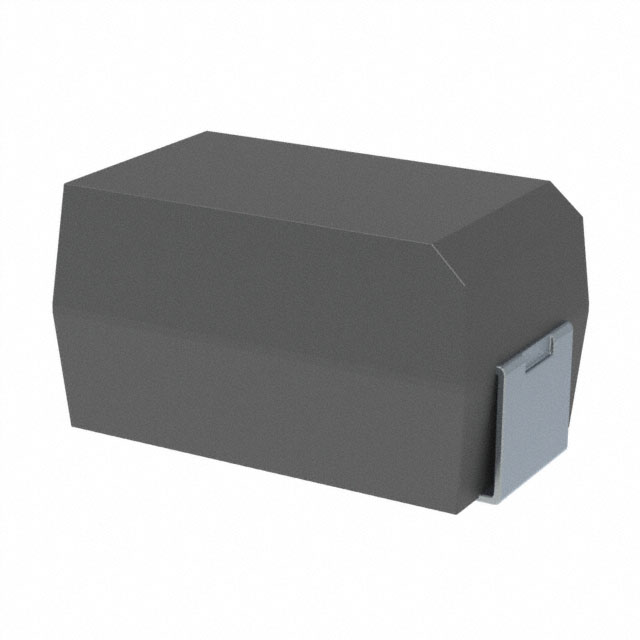

TANTALUM POLYMER CAPACITOR, KO-CAP®, 1000 ΜF, ± 20%, 3 V, X, 0.015 OHM, 2917 [7343 METRIC]

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

T520X108M003ATE015

Active

KEMET

TANTALUM POLYMER CAPACITOR, KO-CAP®, 1000 ΜF, ± 20%, 3 V, X, 0.015 OHM, 2917 [7343 METRIC]

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T520X108M003ATE015

Capacitance	1000 µF
ESR (Equivalent Series Resistance)	15 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	3 VDC

T520X Series

Part	Voltage - Rated	Features	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Type	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Package / Case	Package / Case
KEMET T520X337M010ATE040	10 V	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	105 ░C	-55 °C	20 %	Surface Mount	330 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	40 mOhm	7343 Metric	2917
KEMET T520X687M004ATE010	4 V	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	125 °C	-55 °C	20 %	Surface Mount	680 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	10 mOhm	7343 Metric	2917
KEMET T520X687M004ATE015	4 V	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	105 ░C	-55 °C	20 %	Surface Mount	680 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	15 mOhm	7343 Metric	2917
KEMET T520X477M006AHE040	6.3 V	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	105 ░C	-55 °C	20 %	Surface Mount	470 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	40 mOhm	7343 Metric	2917
KEMET T520X337M010ATE010	10 V	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	105 ░C	-55 °C	20 %	Surface Mount	330 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	10 mOhm	7343 Metric	2917
KEMET T520X337M010AHE040	10 V	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	105 ░C	-55 °C	20 %	Surface Mount	330 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	40 mOhm	7343 Metric	2917
KEMET T520X108M003ATE015	3 VDC	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	105 ░C	-55 °C	20 %	Surface Mount	1000 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	15 mOhm	7343 Metric	2917
KEMET T520X477M006ATE010	6.3 V	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	105 ░C	-55 °C	20 %	Surface Mount	470 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	10 mOhm	7343 Metric	2917
KEMET T520X337M010ATE025	10 V	General Purpose	Molded	0.169 "	4.3 mm	2000 Hrs	105 ░C	-55 °C	20 %	Surface Mount	330 µF	4.3 mm	0.287 "	7.3 mm	0.169 "	X	25 mOhm	7343 Metric	2917
