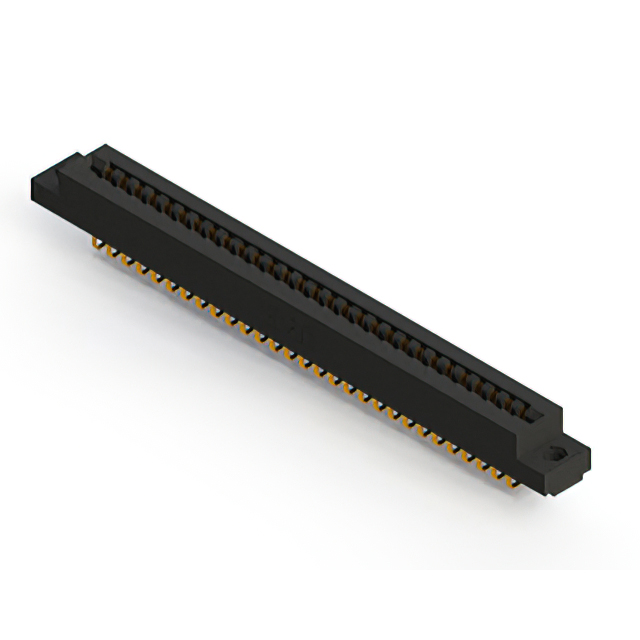

857-058-559-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 58POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-058-559-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 58POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-058-559-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	2

857-058 Series

...

Part	Number of Rows	Material - Insulation	Contact Material	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Number of Positions	Termination Rows	Gender	Color	Flange Feature	Pitch [x]	Pitch [x]	Read Out	Termination	Mounting Type	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 857-058-556-208	2	Polyphenylene Sulfide (PPS)	Copper Alloy	Card Extender	10 Áin	0.25 Ám	29	Gold	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Dual	Solder	Board Edge Straddle Mount
EDAC Inc. 857-058-442-201	2	Polyphenylene Sulfide (PPS)	Copper Alloy				29	Tin	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black		0.156 in	3.96 mm	Dual	Wire Wrap	Through Hole
EDAC Inc. 857-058-420-212	2	Polyphenylene Sulfide (PPS)	Copper Alloy				29	Tin	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black	Side Mount Opening Unthreaded	0.156 in	3.96 mm	Dual	Solder	Through Hole	3.25 mm	0.128 in
EDAC Inc. 857-058-560-201	2	Polyphenylene Sulfide (PPS)	Copper Alloy	Card Extender	10 Áin	0.25 Ám	29	Gold	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black		0.156 in	3.96 mm	Dual	Solder	Board Edge Straddle Mount
EDAC Inc. 857-058-559-201	2	Polyphenylene Sulfide (PPS)	Copper Alloy		10 Áin	0.25 Ám	29	Gold	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black		0.156 in	3.96 mm	Single	Solder	Through Hole Right Angle
EDAC Inc. 857-058-440-207	2	Polyphenylene Sulfide (PPS)	Copper Alloy				29	Tin	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black	Flush Mount M3 Threaded Insert Top Opening	0.156 in	3.96 mm	Dual	Wire Wrap	Through Hole
EDAC Inc. 857-058-424-201	2	Polyphenylene Sulfide (PPS)	Copper Alloy				29	Tin	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black		0.156 in	3.96 mm	Dual	Solder	Through Hole
EDAC Inc. 857-058-559-204	2	Polyphenylene Sulfide (PPS)	Copper Alloy		10 Áin	0.25 Ám	29	Gold	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	Single	Solder	Through Hole Right Angle			3.96 mm	0.156 in
EDAC Inc. 857-058-400-208	2	Polyphenylene Sulfide (PPS)	Copper Alloy				29	Tin	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Dual	Solder Eyelet(s)	Through Hole
EDAC Inc. 857-058-422-208	2	Polyphenylene Sulfide (PPS)	Copper Alloy				29	Tin	125 °C	-40 °C	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	58	2	Female	Black	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Dual	Solder	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 110.11
Newark	Each	1	$ 132.14
		1	$ 132.14
		100	$ 81.41
		100	$ 81.41
		250	$ 71.86
		250	$ 71.86
		500	$ 61.50
		500	$ 61.50
		1000	$ 46.38
		1000	$ 46.38

Description

General part information

857-058 Series

58 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
