857-058-442-201
ActiveEDAC Inc.

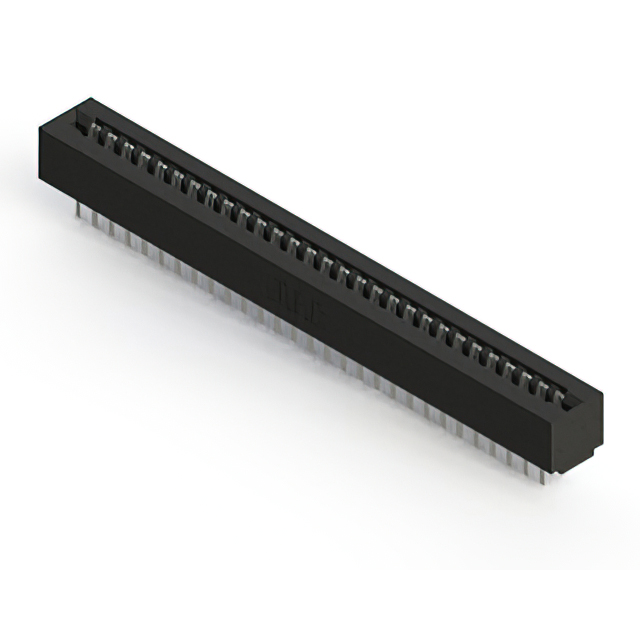

CONN EDGE DUAL FMALE 58POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-058-442-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 58POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-058-442-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
857-058 Series
...
| Part | Number of Rows | Material - Insulation | Contact Material | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Number of Positions | Termination Rows | Gender | Color | Flange Feature | Pitch [x] | Pitch [x] | Read Out | Termination | Mounting Type | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | 29 | Gold | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Dual | Solder | Board Edge Straddle Mount | ||||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | 29 | Tin | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | 0.156 in | 3.96 mm | Dual | Wire Wrap | Through Hole | ||||||||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | 29 | Tin | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | Side Mount Opening Unthreaded | 0.156 in | 3.96 mm | Dual | Solder | Through Hole | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | 29 | Gold | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | 0.156 in | 3.96 mm | Dual | Solder | Board Edge Straddle Mount | |||||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | 10 Áin | 0.25 Ám | 29 | Gold | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | 0.156 in | 3.96 mm | Single | Solder | Through Hole Right Angle | ||||||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | 29 | Tin | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | Dual | Wire Wrap | Through Hole | |||||||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | 29 | Tin | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | 0.156 in | 3.96 mm | Dual | Solder | Through Hole | ||||||||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | 10 Áin | 0.25 Ám | 29 | Gold | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | Single | Solder | Through Hole Right Angle | 3.96 mm | 0.156 in | |||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | 29 | Tin | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Dual | Solder Eyelet(s) | Through Hole | |||||||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Copper Alloy | 29 | Tin | 125 °C | -40 °C | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 58 | 2 | Female | Black | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Dual | Solder | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 80.87 | |
Description
General part information
857-058 Series
58 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
