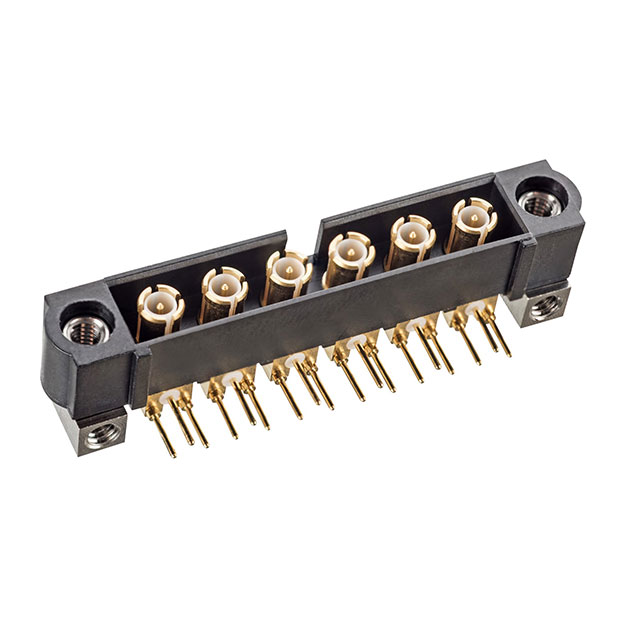

M80-MH313M5-06
ActiveHarwin Inc.
CONN HEADER R/A 6POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
M80-MH313M5-06
ActiveHarwin Inc.
CONN HEADER R/A 6POS 4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-MH313M5-06 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin, Coaxial |
| Features | Mating Flange, Mounting Flange |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.157 " |
| Pitch - Mating | 4 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 95.59 | |
| 14 | $ 79.35 | |||
| 105 | $ 69.29 | |||
Description
General part information
M80-MH3 Series
Connector Header Through Hole, Right Angle 6 (Coax) position 0.157" (4.00mm)
