M80-MH313M5-08 - M80-MH313M5-08

M80-MH313M5-08

Active
Harwin Inc.

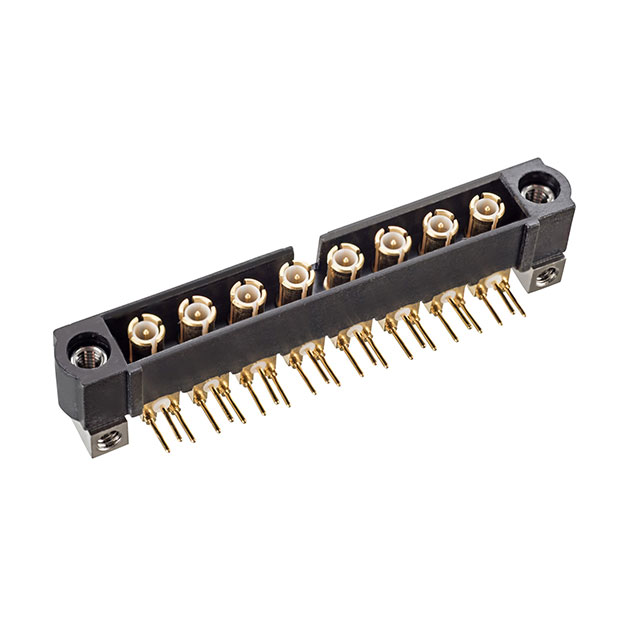

8 POS. MALE SIL COAX HORIZONTAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-263F102-00-00Datasheet+2
M80-MH313M5-08 - M80-MH313M5-08

M80-MH313M5-08

Active
Harwin Inc.

8 POS. MALE SIL COAX HORIZONTAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-263F102-00-00Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-MH313M5-08
Connector TypeHeader
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Contact ShapeCircular
Contact TypeMale Pin, Coaxial
FeaturesMating Flange, Mounting Flange
Insulation ColorBlack
Insulation Height5.6 mm
Insulation Height0.22 in
Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions8
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.157 "
Pitch - Mating4 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 124.34
12$ 114.10
LCSCPiece 1$ 216.67
198$ 86.45
498$ 83.57
1002$ 82.14
NewarkEach 1$ 126.01
10$ 118.76
50$ 107.18
100$ 101.39
250$ 98.49
500$ 96.32

Description

General part information

M80-MH3 Series

Connector Header Through Hole, Right Angle 8 (Coax) position 0.157" (4.00mm)
