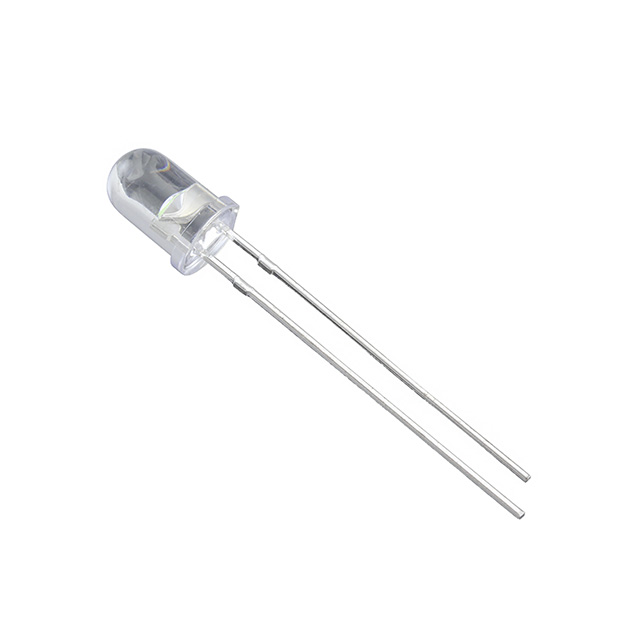

WP7113VRCBC/A
ActiveKingbright
LED CYAN CLEAR T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP7113VRCBC/A
ActiveKingbright
LED CYAN CLEAR T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP7113VRCBC/A |
|---|---|
| Color | Cyan |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 8.85 mm |
| Lens Color | Colorless |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 7900 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 5 mm |
| Supplier Device Package | T-1 3/4 (5mm) |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
WP7113 Series
...
| Part | Mounting Type | Type | Voltage - Forward (Vf) (Typ) | Orientation | Viewing Angle | Wavelength | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Radiant Intensity (Ie) Min @ If [Min] | Current - DC Forward (If) (Max) [Max] | Configuration | Lens Size | Lens Size | Wavelength - Dominant | Wavelength - Peak | Millicandela Rating | Color | Lens Style | Lens Transparency | Lens Color | Height (Max) [Max] [z] | Size / Dimension [diameter] | Supplier Device Package | Current - Test | Radiant Intensity (Ie) Min @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kingbright | Through Hole | Infrared (IR) | 1.3 V | Top View | 20 ° | 880 nm | 85 °C | -40 °C | Radial | 12 mW/sr | 50 mA | |||||||||||||||
Kingbright | Through Hole | 30 ° | Radial | Standard | T-1 3/4 | 5 mm | 617 nm | 627 nm | 22 mcd | Red | Round with Domed Top | Diffused | Red | 8.6 mm | 5 mm | T-1 3/4 | 10.5 mA | |||||||||
Kingbright | Through Hole | 3.3 V | 20 ° | Radial | Standard | T-1 3/4 | 5 mm | 525 nm | 515 nm | 12000 mcd | Green | Round with Domed Top | Clear | Colorless | 8.6 mm | 5 mm | T-1 3/4 | 20 mA | ||||||||
Kingbright | Through Hole | 1.95 V | 30 ° | Radial | T-1 3/4 | 5 mm | 630 nm | 645 nm | 1300 mcd | Red | Round with Domed Top | Diffused | Red | 9.85 mm | 5 mm | T-1 3/4 (5mm) | 20 mA | |||||||||
Kingbright | Through Hole | Infrared (IR) | Top View | 20 ° | 940 nm | 85 °C | -40 °C | Radial | 50 mA | 15 mW/sr | ||||||||||||||||
Kingbright | Through Hole | 2.05 V | 20 ° | Radial | Standard | T-1 3/4 | 5 mm | 602 nm | 607 nm | 70 mcd | Round with Domed Top | Clear | Colorless | 8.6 mm | 5 mm | T-1 3/4 | 20 mA | |||||||||
Kingbright | Through Hole | 1.95 V | 20 ° | Radial | T-1 3/4 | 5 mm | 630 nm | 645 nm | 4200 mcd | Red | Round with Domed Top | Clear | Colorless | 9.85 mm | 5 mm | T-1 3/4 (5mm) | 20 mA | |||||||||
Kingbright | Through Hole | 16 V | 30 ° | Radial | T-1 3/4 | 5 mm | 630 nm | 645 nm | 300 mcd | Red | Round with Domed Top | Diffused | Red | 9.85 mm | 5 mm | T-1 3/4 (5mm) | ||||||||||
Kingbright | Through Hole | 2 V | 20 ° | Radial | Standard | T-1 3/4 | 5 mm | 590 nm | 590 nm | 3100 mcd | Yellow | Round with Domed Top | Clear | Yellow | 8.6 mm | 5 mm | T-1 3/4 | 20 mA | ||||||||
Kingbright | Through Hole | 1.85 V | 30 ° | Radial | Standard | T-1 3/4 | 5 mm | 588 nm | 590 nm | 3 mcd | Yellow | Round with Domed Top | Diffused | Yellow | 8.6 mm | 5 mm | T-1 3/4 | 2 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.30 | |||
| 1000 | $ 0.23 | |||
| 5000 | $ 0.19 | |||
| 10000 | $ 0.19 | |||
Description
General part information
WP7113 Series
Cyan LED Indication - Discrete 3.3V Radial
