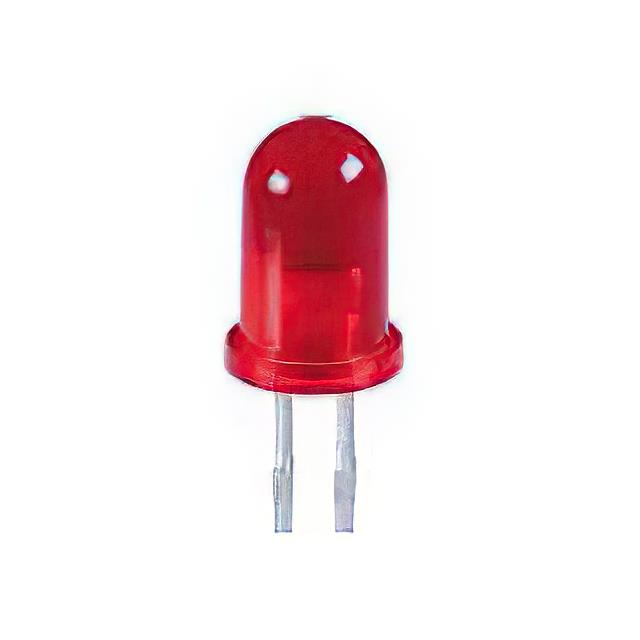

Specification	WP7113SURDK14V

Color	Red
Height (Max)	9.85 mm
Lens Color	Red
Lens Size	5 mm
Lens Size (Code)	T-1 3/4
Lens Style	Round, Domed Top
Lens Transparency	Diffused
Millicandela Rating	300 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Dimension	5 mm
Package Name	T-1 3/4, T-1 3/4 (5mm)
Size / Dimension Diameter	5 mm
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	16 V
Wavelength - Dominant	630 nm
Wavelength - Peak	645 nm

WP7113 Series

...

Part	Wavelength	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Radiant Intensity (Ie) Min	Type	Current - DC Forward (If) (Max)	Package / Case	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Configuration	Lens Transparency	Wavelength - Dominant	Millicandela Rating	Package Name	Color	Lens Style	Lens Color	Current - Test	Height (Max)	Size / Dimension Diameter	Lens Size	Lens Size (Code)	Package Dimension
Kingbright WP7113SF4BT-P22	880 nm	Top View	-40 °C	85 °C	12 mW/sr	Infrared (IR)	50 mA	Radial	Through Hole	20 °	1.3 V
Kingbright WP7113ID14V								Radial	Through Hole	30 °	14 V	627 nm	Standard	Diffused	617 nm	22 mcd	T-1 3/4	Red	Domed Top Round	Red	10.5 mA	8.6 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113ZGCK								Radial	Through Hole	20 °	3.3 V	515 nm	Standard	Clear	525 nm	12000 mcd	T-1 3/4	Green	Domed Top Round	Colorless	20 mA	8.6 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113SURDK								Radial	Through Hole	30 °	1.95 V	645 nm		Diffused	630 nm	1300 mcd	T-1 3/4 T-1 3/4 (5mm)	Red	Domed Top Round	Red	20 mA	9.85 mm	5 mm	5 mm	T-1 3/4	5 mm
Kingbright WP7113SEC								Radial	Through Hole	20 °	2 V	610 nm	Standard	Clear	601 nm	2200 mcd	T-1 3/4	Orange	Domed Top Round	Colorless	20 mA	8.6 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113F3C	940 nm	Top View	-40 °C	85 °C	15 mW/sr	Infrared (IR)	50 mA	Radial	Through Hole	20 °	1.2 V
Kingbright WP7113NC								Radial	Through Hole	20 °	2.05 V	607 nm	Standard	Clear	602 nm	70 mcd	T-1 3/4	Orange	Domed Top Round	Colorless	20 mA	8.6 mm	5 mm	5 mm	T-1 3/4
Kingbright WP7113SURCK								Radial	Through Hole	20 °	1.95 V	645 nm		Clear	630 nm	4200 mcd	T-1 3/4 T-1 3/4 (5mm)	Red	Domed Top Round	Colorless	20 mA	9.85 mm	5 mm	5 mm	T-1 3/4	5 mm
Kingbright WP7113SURDK14V								Radial	Through Hole	30 °	16 V	645 nm		Diffused	630 nm	300 mcd	T-1 3/4 T-1 3/4 (5mm)	Red	Domed Top Round	Red		9.85 mm	5 mm	5 mm	T-1 3/4	5 mm
Kingbright WP7113SYT								Radial	Through Hole	20 °	2 V	590 nm	Standard	Clear	590 nm	3100 mcd	T-1 3/4	Yellow	Domed Top Round	Yellow	20 mA	8.6 mm	5 mm	5 mm	T-1 3/4
