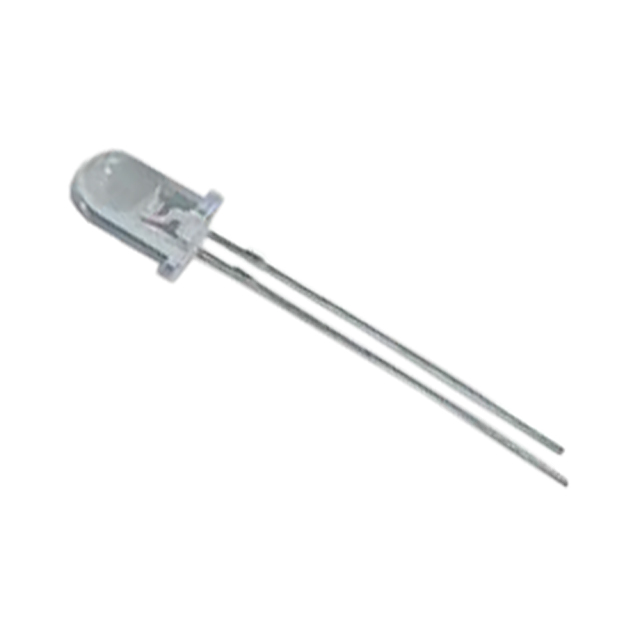

WP7113F3C

Active

Kingbright

EMITTER IR 940NM 50MA RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP7113F3C

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If	15 mW/sr
Type	Infrared (IR)
Viewing Angle	20 °
Wavelength	940 nm

WP7113 Series

...

Part	Mounting Type	Type	Voltage - Forward (Vf) (Typ)	Orientation	Viewing Angle	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Configuration	Lens Size	Lens Size	Wavelength - Dominant	Wavelength - Peak	Millicandela Rating	Color	Lens Style	Lens Transparency	Lens Color	Height (Max) [Max] [z]	Size / Dimension [diameter]	Supplier Device Package	Current - Test	Radiant Intensity (Ie) Min @ If
Kingbright WP7113SF4BT-P22	Through Hole	Infrared (IR)	1.3 V	Top View	20 °	880 nm	85 °C	-40 °C	Radial	12 mW/sr	50 mA
Kingbright WP7113ID14V	Through Hole				30 °				Radial			Standard	T-1 3/4	5 mm	617 nm	627 nm	22 mcd	Red	Round with Domed Top	Diffused	Red	8.6 mm	5 mm	T-1 3/4	10.5 mA
Kingbright WP7113ZGCK	Through Hole		3.3 V		20 °				Radial			Standard	T-1 3/4	5 mm	525 nm	515 nm	12000 mcd	Green	Round with Domed Top	Clear	Colorless	8.6 mm	5 mm	T-1 3/4	20 mA
Kingbright WP7113SURDK	Through Hole		1.95 V		30 °				Radial				T-1 3/4	5 mm	630 nm	645 nm	1300 mcd	Red	Round with Domed Top	Diffused	Red	9.85 mm	5 mm	T-1 3/4 (5mm)	20 mA
Kingbright WP7113F3C	Through Hole	Infrared (IR)		Top View	20 °	940 nm	85 °C	-40 °C	Radial		50 mA															15 mW/sr
Kingbright WP7113NC	Through Hole		2.05 V		20 °				Radial			Standard	T-1 3/4	5 mm	602 nm	607 nm	70 mcd		Round with Domed Top	Clear	Colorless	8.6 mm	5 mm	T-1 3/4	20 mA
Kingbright WP7113SURCK	Through Hole		1.95 V		20 °				Radial				T-1 3/4	5 mm	630 nm	645 nm	4200 mcd	Red	Round with Domed Top	Clear	Colorless	9.85 mm	5 mm	T-1 3/4 (5mm)	20 mA
Kingbright WP7113SURDK14V	Through Hole		16 V		30 °				Radial				T-1 3/4	5 mm	630 nm	645 nm	300 mcd	Red	Round with Domed Top	Diffused	Red	9.85 mm	5 mm	T-1 3/4 (5mm)
Kingbright WP7113SYT	Through Hole		2 V		20 °				Radial			Standard	T-1 3/4	5 mm	590 nm	590 nm	3100 mcd	Yellow	Round with Domed Top	Clear	Yellow	8.6 mm	5 mm	T-1 3/4	20 mA
Kingbright WP7113LYD	Through Hole		1.85 V		30 °				Radial			Standard	T-1 3/4	5 mm	588 nm	590 nm	3 mcd	Yellow	Round with Domed Top	Diffused	Yellow	8.6 mm	5 mm	T-1 3/4	2 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.31
		10	$ 0.21
		100	$ 0.14
		500	$ 0.10
		1000	$ 0.08
		2000	$ 0.07
		5000	$ 0.07

Description

General part information

WP7113 Series

Infrared (IR) Emitter 940nm 1.2V 50mA 15mW/sr @ 30mA 20° Radial
