Specification	TAS2764EVM

Amplifier Type	Class D
Board Type	Fully Populated
Channels	2
Contents	Board
Load Impedance	4 Ohm
Maximum Output Power (per Channel)	13 W
Output Type	1-Channel (Mono)
Supplied Contents	Board(s)
Utilized IC / Part	TAS2764
Voltage - Supply (Maximum)	1.95 V
Voltage - Supply (Minimum)	1.65 V

TAS2764 Series

Part	Output Type	Mounting Type	Package Name	Package Width	Package Length	Channels	Maximum Output Power (per Channel)	Load Impedance	Package / Case	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 3 Maximum)	Voltage - Supply (Range 3 Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Type	Supplied Contents	Board Type	Utilized IC / Part	Contents	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Amplifier Type

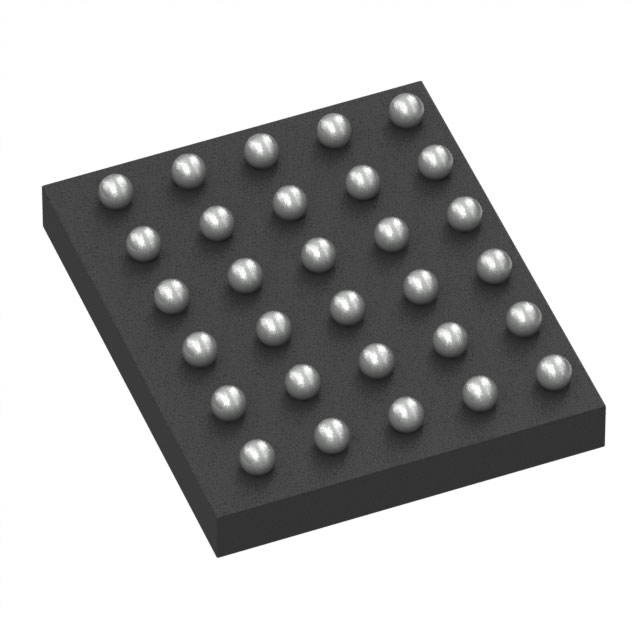

Texas Instruments TAS2764YBHR	1-Channel (Mono)	Surface Mount	30-DSBGA	2.13 mm	2.48 mm	1	15.4 W	4 Ohm	30-XFBGA DSBGA	1.95 V	1.1 V	1.65 V	1.3 V	16 V	2.3 V	85 °C	-40 °C	Class D
Texas Instruments TAS2764EVM	1-Channel (Mono)					2	13 W	4 Ohm											Board(s)	Fully Populated	TAS2764	Board	1.65 V	1.95 V	Class D
