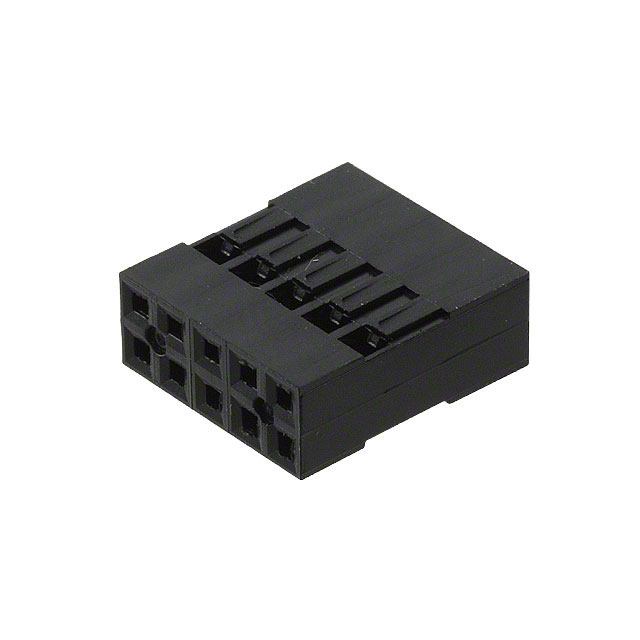

Specification	M20-1070500

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polystyrene (PS), Polyphenylene Ether (PPE)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch	0.1 in
Row Spacing	0.1 in

M20-107 Series

Part	Color	Contact Termination	Insulation Material	Number of Positions	Contact Type	Pitch	Connector Type	Mounting Type	Number of Rows	Row Spacing	Operating Temperature (Max)	Operating Temperature (Min)	Note
Harwin Inc. M20-1070700	Black	Crimp	Polyphenylene Ether (PPE) Polystyrene (PS)	14	Female Socket	0.1 in	Receptacle	Free Hanging (In-Line)	2	0.1 in	85 °C	-25 °C	Contacts Not Included
Harwin Inc. M20-1071200	Black	Crimp	Polyphenylene Ether (PPE) Polystyrene (PS)	24 pos	Female Socket	0.1 in	Receptacle	Free Hanging (In-Line)	2	0.1 in	85 °C	-25 °C	Contacts Not Included
Harwin Inc. M20-1070200	Black	Crimp	Polyphenylene Ether (PPE) Polystyrene (PS)	4	Female Socket	0.1 in	Receptacle	Free Hanging (In-Line)	2	0.1 in	85 °C	-25 °C	Contacts Not Included
Harwin Inc. M20-1070300	Black	Crimp	Polyphenylene Ether (PPE) Polystyrene (PS)	6	Female Socket	0.1 in	Receptacle	Free Hanging (In-Line)	2	0.1 in	85 °C	-25 °C	Contacts Not Included
Harwin Inc. M20-1070800	Black	Crimp	Polyphenylene Ether (PPE) Polystyrene (PS)	16	Female Socket	0.1 in	Receptacle	Free Hanging (In-Line)	2	0.1 in	85 °C	-25 °C	Contacts Not Included
Harwin Inc. M20-1070500	Black	Crimp	Polyphenylene Ether (PPE) Polystyrene (PS)	10	Female Socket	0.1 in	Receptacle	Free Hanging (In-Line)	2	0.1 in	85 °C	-25 °C	Contacts Not Included
Harwin Inc. M20-1071000	Black	Crimp	Polyphenylene Ether (PPE) Polystyrene (PS)	20	Female Socket	0.1 in	Receptacle	Free Hanging (In-Line)	2	0.1 in	85 °C	-25 °C	Contacts Not Included
Harwin Inc. M20-1071100	Black	Crimp	Polyphenylene Ether (PPE) Polystyrene (PS)	22	Female Socket	0.1 in	Receptacle	Free Hanging (In-Line)	2	0.1 in	85 °C	-25 °C	Contacts Not Included
