M20-1070800

Active

Harwin Inc.

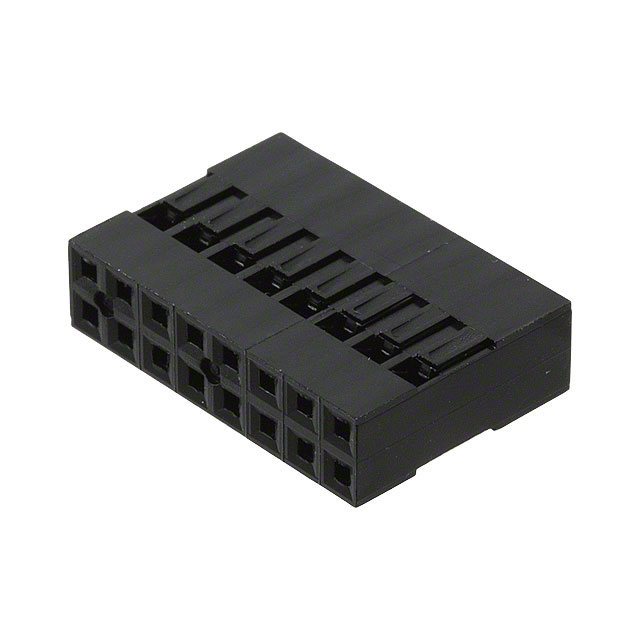

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, CRIMP TERMINAL, PLUG, LEAD FREE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 Datasheet +3

M20-1070800

Active

Harwin Inc.

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, CRIMP TERMINAL, PLUG, LEAD FREE

Deep-Dive with AI

DocumentsM20-003 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-1070800

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyphenylene Ether (PPE), Polystyrene (PS)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

M20-107 Series

Part	Row Spacing [x]	Row Spacing	Note	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Color	Insulation Material	Contact Type	Contact Termination	Mounting Type	Number of Positions
Harwin Inc. M20-1070700	0.1 in	2.54 mm	Contacts Not Included	-25 °C	85 °C	14	2.54 mm	0.1 in	2	Receptacle	Black	Polyphenylene Ether (PPE) Polystyrene (PS)	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M20-1071200	0.1 in	2.54 mm	Contacts Not Included	-25 °C	85 °C	24	2.54 mm	0.1 in	2	Receptacle	Black	Polyphenylene Ether (PPE) Polystyrene (PS)	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M20-1070400	0.1 in	2.54 mm	Contacts Not Included	-25 °C	85 °C	8	2.54 mm	0.1 in	2	Receptacle	Black	Polyphenylene Ether (PPE) Polystyrene (PS)	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M20-1070300	0.1 in	2.54 mm	Contacts Not Included	-25 °C	85 °C	6	2.54 mm	0.1 in	2	Receptacle	Black	Polyphenylene Ether (PPE) Polystyrene (PS)	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M20-1070800	0.1 in	2.54 mm	Contacts Not Included	-25 °C	85 °C		2.54 mm	0.1 in	2	Receptacle	Black	Polyphenylene Ether (PPE) Polystyrene (PS)	Female Socket	Crimp	Free Hanging (In-Line)	16
Harwin Inc. M20-1070500	0.1 in	2.54 mm	Contacts Not Included	-25 °C	85 °C	10	2.54 mm	0.1 in	2	Receptacle	Black	Polyphenylene Ether (PPE) Polystyrene (PS)	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M20-1070900	0.1 in	2.54 mm	Contacts Not Included	-25 °C	85 °C	18	2.54 mm	0.1 in	2	Receptacle	Black	Polyphenylene Ether (PPE) Polystyrene (PS)	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M20-1071100	0.1 in	2.54 mm	Contacts Not Included	-25 °C	85 °C	22 positions	2.54 mm	0.1 in	2	Receptacle	Black	Polyphenylene Ether (PPE) Polystyrene (PS)	Female Socket	Crimp	Free Hanging (In-Line)
