MS102-10C-NS

Active

Masach Tech Ltd.

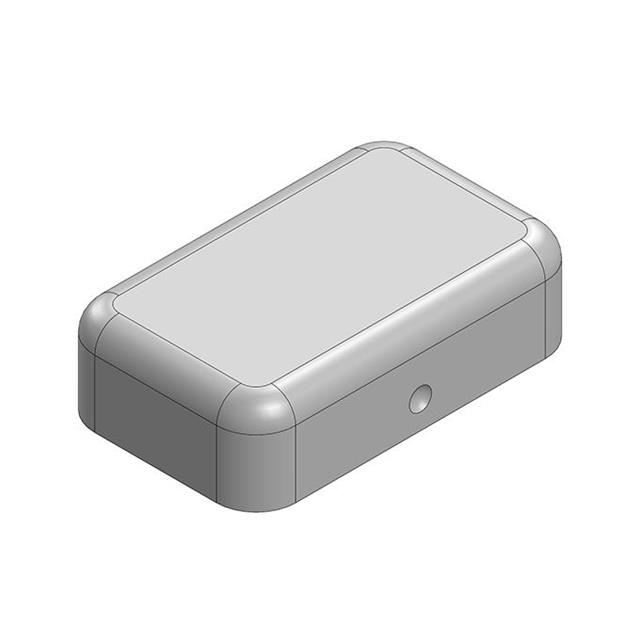

RF SHIELD 0.260X0.425" SNAP FIT

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.260X0.425" SNAP FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.236"X0.402" SOLDER

Part	Height - Overall [z]	Height - Overall	Length - Overall [x]	Length - Overall [x]	Width - Overall [y]	Width - Overall [y]	Mounting Type	Ventilation	Type	Width - Overall [x]	Width - Overall [x]
Masach Tech Ltd. MS102-10S-NS	0.118 in	3 mm	0.402 in	10.2 mm	6 mm	0.236 "	Solder	Non-Vented	Shield, 1-Piece
Masach Tech Ltd. MS102-10F-NS	0.118 in	3 mm	0.402 in	10.2 mm	6 mm	0.236 "	Solder		Frame
Masach Tech Ltd. MS102-10C	0.118 in	3 mm	0.425 in	10.8 mm			Snap Fit	Non-Vented	Cover	0.26 "	6.6 mm
Masach Tech Ltd. MS102-10F	0.118 in	3 mm	0.402 in	10.2 mm	6 mm	0.236 "	Solder		Frame
Masach Tech Ltd. MS102-10C-NS	0.118 in	3 mm	0.425 in	10.8 mm			Snap Fit	Non-Vented	Cover	0.26 "	6.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Cover 0.260" (6.60mm) X 0.425" (10.80mm) Non-Vented Snap Fit
