MS102-10F

Active

Masach Tech Ltd.

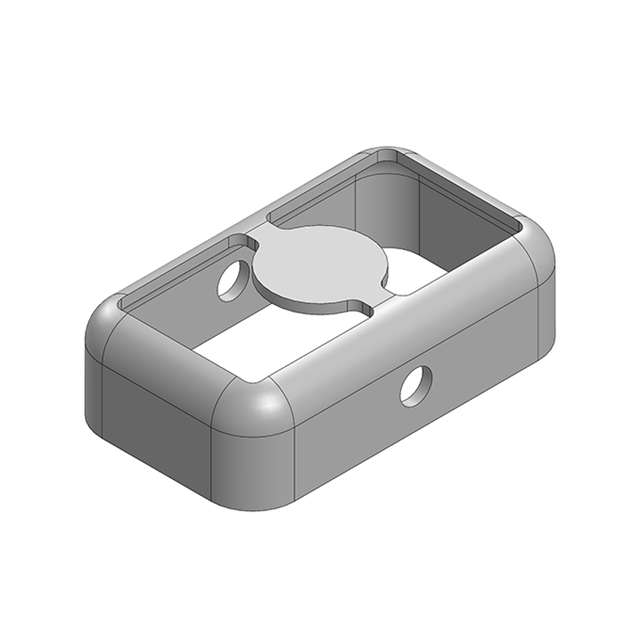

10.2 X 6 X 3MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS)

Search across all available documentation for this part.

Active

Masach Tech Ltd.

10.2 X 6 X 3MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Frame 0.236" (6.00mm) X 0.402" (10.20mm) Solder

Technical documentation and resources

Part	Height - Overall [z]	Height - Overall	Length - Overall [x]	Length - Overall [x]	Width - Overall [y]	Width - Overall [y]	Mounting Type	Ventilation	Type	Width - Overall [x]	Width - Overall [x]
Masach Tech Ltd. MS102-10S-NS	0.118 in	3 mm	0.402 in	10.2 mm	6 mm	0.236 "	Solder	Non-Vented	Shield, 1-Piece
Masach Tech Ltd. MS102-10F-NS	0.118 in	3 mm	0.402 in	10.2 mm	6 mm	0.236 "	Solder		Frame
Masach Tech Ltd. MS102-10C	0.118 in	3 mm	0.425 in	10.8 mm			Snap Fit	Non-Vented	Cover	0.26 "	6.6 mm
Masach Tech Ltd. MS102-10F	0.118 in	3 mm	0.402 in	10.2 mm	6 mm	0.236 "	Solder		Frame
Masach Tech Ltd. MS102-10C-NS	0.118 in	3 mm	0.425 in	10.8 mm			Snap Fit	Non-Vented	Cover	0.26 "	6.6 mm
