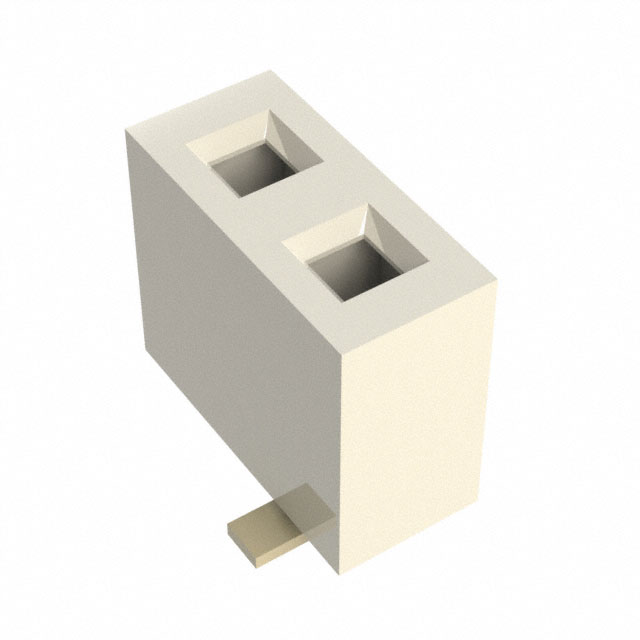

BG306-02-A-1-0400-L-G

Active

GCT

2W, 2.54MM PTH SCK, SIL, SMT, VE

Search across all available documentation for this part.

Active

GCT

2W, 2.54MM PTH SCK, SIL, SMT, VE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BG306-02-A-1-0400-L-G	BG306 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Natural	Natural
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	2	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Termination	Solder	Solder

5W, 2.54MM PITCH SCK, SIL, SMT,

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Contact Material	Termination	Current Rating (Amps)	Contact Shape	Insulation Height	Insulation Height	Connector Type	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Post	Number of Rows	Insulation Color	Contact Type	Number of Positions
GCT BG306-05-A-2-0400-L-B	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket
GCT BG306-02-A-1-0400-L-G	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket	2
GCT BG306-06-A-2-0400-L-B	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket	6
GCT BG306-04-A-2-0400-L-B	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket	4
GCT BG306-03-A-2-0400-L-B	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	3000	$ 0.33

General part information

2 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold

Technical documentation and resources
