BG306-04-A-2-0400-L-B

Active

GCT

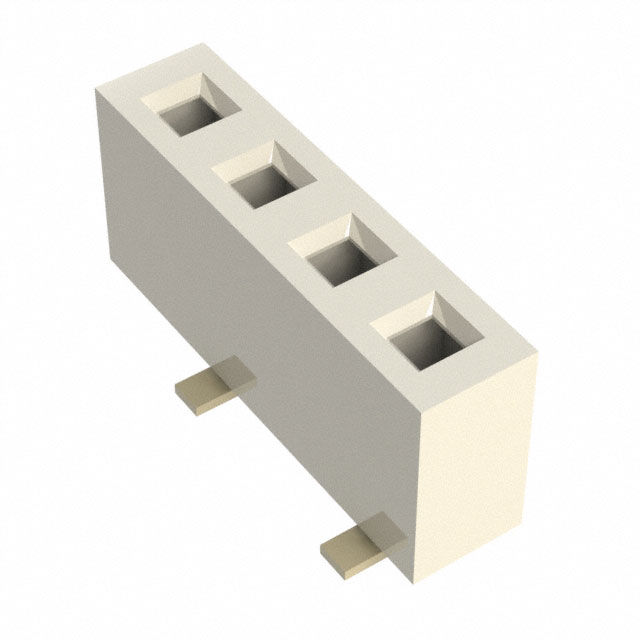

4W, 2.54MM PITCH SOCKET, SIL, SMT, VERT, R2, GF, LCP NAT, T+R+C ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

GCT

4W, 2.54MM PITCH SOCKET, SIL, SMT, VERT, R2, GF, LCP NAT, T+R+C ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BG306-04-A-2-0400-L-B	BG306 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Natural	Natural
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	4	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Termination	Solder	Solder

5W, 2.54MM PITCH SCK, SIL, SMT,

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Contact Material	Termination	Current Rating (Amps)	Contact Shape	Insulation Height	Insulation Height	Connector Type	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Post	Number of Rows	Insulation Color	Contact Type	Number of Positions
GCT BG306-05-A-2-0400-L-B	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket
GCT BG306-02-A-1-0400-L-G	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket	2
GCT BG306-06-A-2-0400-L-B	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket	6
GCT BG306-04-A-2-0400-L-B	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket	4
GCT BG306-03-A-2-0400-L-B	-40 °C	105 ░C	Flash	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	Phosphor Bronze	Solder	3 A	Square	0.197 in	5 mm	Receptacle	Gold	Surface Mount	Gold	Flash	1	Natural	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4800	$ 0.43
Newark	Each	1000	$ 0.65

General part information

4 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
