ADS8568SRGCT

Active

Texas Instruments

16-BIT, 8-CHANNEL, SIMULTANEOUS-SAMPLING, BIPOLAR-INPUT, SAR ANALOG-TO-DIGITAL CONVERTER (ADC)

Find alt

Alpha

ADS8568SRGCT

Active

Texas Instruments

16-BIT, 8-CHANNEL, SIMULTANEOUS-SAMPLING, BIPOLAR-INPUT, SAR ANALOG-TO-DIGITAL CONVERTER (ADC)

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

ADS8568 Series

The ADS85x8 contain eight low-power, 12-, 14-, or 16-bit, successive approximation register (SAR)-based analog-to-digital converters (ADCs) with true bipolar inputs. These channels are grouped in four pairs, thus allowing simultaneous high-speed signal acquisition of up to 650 kSPS.

The devices support selectable parallel or serial interface with daisy-chain capability. The programmable reference allows handling of analog input signals with amplitudes up to ±12 V.

The ADS85x8 family supports an auto-sleep mode for minimum power dissipation and is available in both 64-pin VQFN and LQFP packages. The entire family is specified over a temperature range of –40°C to +125°C.

Technical Specifications

Parameters and characteristics for this part

Specification	ADS8568SRGCT

Architecture	SAR
Configuration	S/H-ADC
Data Interface	SPI, Parallel
Features	Simultaneous Sampling
Input Type	Single Ended
Mounting Type	Surface Mount
Number of A/D Converters	1 count
Number of Bits	16 bits
Number of Inputs	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	64-VFQFN Exposed Pad
Package Length	9 mm
Package Name	64-VQFN
Package Width	9 mm
Ratio - ADC	1
Ratio - S/H	1
Reference Type	External, Internal
Sampling Rate (Per Second)	500 kHz
Voltage - Supply, Analog	5 V
Voltage - Supply, Digital (Max)	5.5 V
Voltage - Supply, Digital (Min)	2.7 V

ADS8568 Series

Part	Number of A/D Converters	Features	Number of Bits	Data Interface	Package / Case	Configuration	Number of Inputs	Mounting Type	Reference Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Ratio - ADC	Ratio - S/H	Operating Temperature (Max)	Operating Temperature (Min)	Input Type	Sampling Rate (Per Second)	Voltage - Supply, Analog	Architecture	Package Width	Package Name	Package Length	Supplied Contents	Utilized IC / Part	Contents	Input Range	Power (Typ)
Texas Instruments ADS8568SRGCT	1 count	Simultaneous Sampling	16 bits	Parallel SPI	64-VFQFN Exposed Pad	S/H-ADC	8	Surface Mount	External Internal	2.7 V	5.5 V	1	1	125 °C	-40 °C	Single Ended	500 kHz	5 V	SAR	9 mm	64-VQFN	9 mm
Texas Instruments ADS8568SRGCR	1 count	Simultaneous Sampling	16 bits	Parallel SPI	64-VFQFN Exposed Pad	S/H-ADC	8	Surface Mount	External Internal	2.7 V	5.5 V	1	1	125 °C	-40 °C	Single Ended	500 kHz	5 V	SAR	9 mm	64-VQFN	9 mm

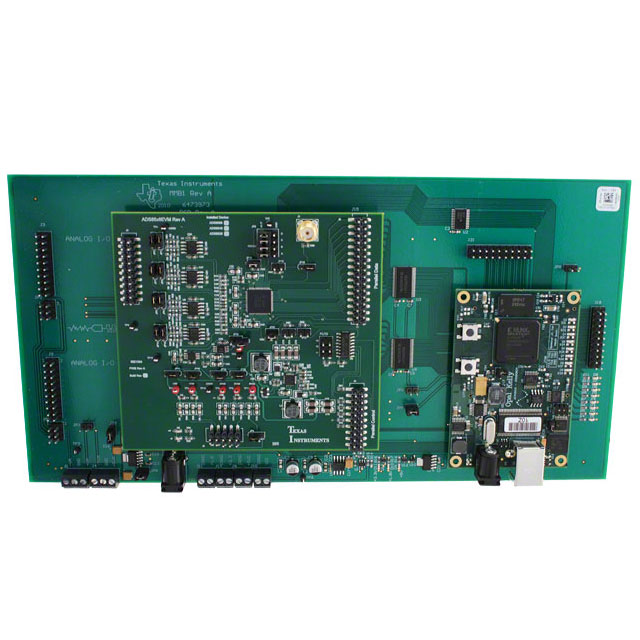

Texas Instruments ADS8568EVM-PDK	8 count		16 bits	Parallel Serial													400 kHz 510 kHz						Board(s)	ADS8568	Board	±4 x VREF	259.7 mW
Texas Instruments ADS8568SPM	1 count	Simultaneous Sampling	16 bits	Parallel SPI	64-LQFP	S/H-ADC	8	Surface Mount	External Internal	2.7 V	5.5 V	1	1	125 °C	-40 °C	Single Ended	500 kHz	5 V	SAR	10 mm	64-LQFP	10 mm
Texas Instruments ADS8568SPMR	1 count	Simultaneous Sampling	16 bits	Parallel SPI	64-LQFP	S/H-ADC	8	Surface Mount	External Internal	2.7 V	5.5 V	1	1	125 °C	-40 °C	Single Ended	500 kHz	5 V	SAR	10 mm	64-LQFP	10 mm
