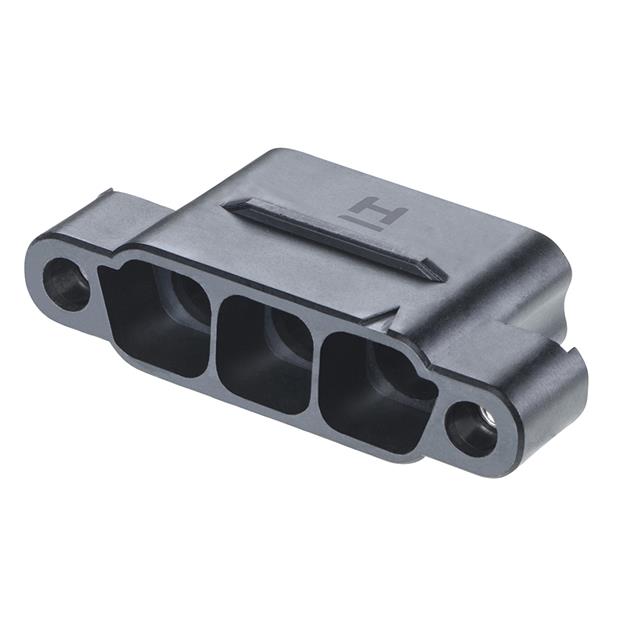

Specification	KA1-3010398M3

Color	Black
Connector Type	Plug
Contact Termination	Solder
Contact Type	Male Pin, Power
Fastening Type	Threaded
Features	Mating Flange
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Pitch	0.335 in

KA1-301 Series

Part	Pitch	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Color	Number of Rows	Features	Fastening Type	Insulation Material	Mounting Type	Connector Type	Contact Type	Contact Termination	Note
Harwin Inc. KA1-3010398M5	0.335 in	3	-65 °C	150 °C	Black	1	Jackscrews	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Plug	Male Pin Power	Solder	Contacts Not Included
Harwin Inc. KA1-3010298M3	0.335 in	2	-65 °C	150 °C	Black	1	Mating Flange	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Free Hanging (In-Line) Panel Mount	Plug	Male Pin Power	Solder	Contacts Not Included
Harwin Inc. KA1-3010298M1	0.335 in	2	-65 °C	150 °C	Black	1	Mounting Flange	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Panel Mount	Plug	Male Pin Power	Solder	Contacts Not Included
Harwin Inc. KA1-3010298M5	0.335 in	2	-65 °C	150 °C	Black	1	Jackscrews	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Plug	Male Pin Power	Solder	Contacts Not Included
Harwin Inc. KA1-3010398M3	0.335 in	3	-65 °C	150 °C	Black	1	Mating Flange	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Free Hanging (In-Line) Panel Mount	Plug	Male Pin Power	Solder	Contacts Not Included
Harwin Inc. KA1-3010498M3	0.335 in	4	-65 °C	150 °C	Black	1	Mating Flange	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Free Hanging (In-Line) Panel Mount	Plug	Male Pin Power	Solder	Contacts Not Included
Harwin Inc. KA1-3010398M1	0.335 in	3	-65 °C	150 °C	Black	1	Mounting Flange	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Panel Mount	Plug	Male Pin Power	Solder	Contacts Not Included
Harwin Inc. KA1-3010498M5	0.335 in	4	-65 °C	150 °C	Black	1	Jackscrews	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Plug	Male Pin Power	Solder	Contacts Not Included
Harwin Inc. KA1-3010498M1	0.335 in	4	-65 °C	150 °C	Black	1	Mounting Flange	Threaded	Glass Filled Polyphenylene Sulfide (PPS)	Panel Mount	Plug	Male Pin Power	Solder	Contacts Not Included
