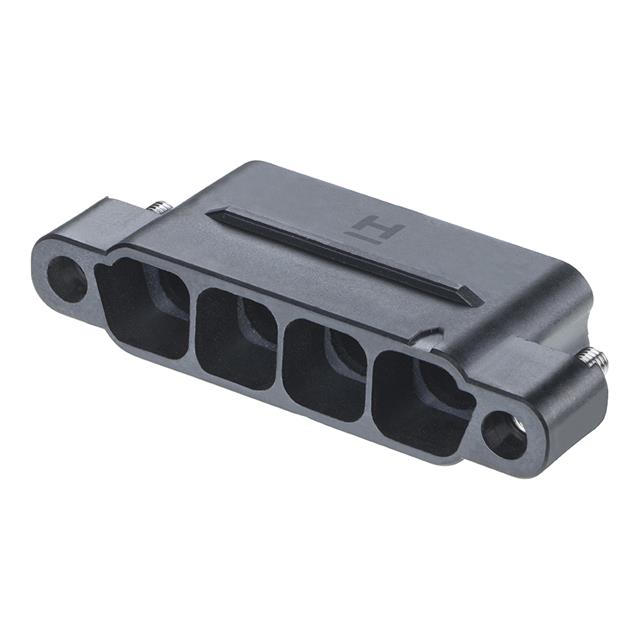

KA1-3010498M1
ActiveHarwin Inc.
RECT PWR HOUSING, PLUG, 4POS, CABLE/PNL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
KA1-3010498M1
ActiveHarwin Inc.
RECT PWR HOUSING, PLUG, 4POS, CABLE/PNL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KA1-3010498M1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Solder |
| Contact Type | Male Pin, Power |
| Features | Mounting Flange |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.335 in |
| Pitch [x] | 8.5 mm |
KA1-301 Series
| Part | Connector Type | Number of Rows | Color | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Insulation Material | Note | Contact Termination | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Plug | 1 | Black | Free Hanging (In-Line) | Jackscrews | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | |
Harwin Inc. | Plug | 1 | Black | Free Hanging (In-Line) Panel Mount | Mating Flange | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | 2 |
Harwin Inc. | Plug | 1 | Black | Mounting Flange | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | 2 | |
Harwin Inc. | Plug | 1 | Black | Free Hanging (In-Line) | Jackscrews | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | 2 |
Harwin Inc. | Plug | 1 | Black | Free Hanging (In-Line) Panel Mount | Mating Flange | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | |
Harwin Inc. | Plug | 1 | Black | Free Hanging (In-Line) Panel Mount | Mating Flange | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | 4 |
Harwin Inc. | Plug | 1 | Black | Mounting Flange | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | ||
Harwin Inc. | Plug | 1 | Black | Free Hanging (In-Line) | Jackscrews | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | 4 |
Harwin Inc. | Plug | 1 | Black | Mounting Flange | -65 ░C | 150 °C | Male Pin Power | Polyphenylene Sulfide (PPS) Glass Filled | Contacts Not Included | Solder | 0.335 in | 8.5 mm | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KA1-301 Series
4 Rectangular Connectors - Housings Plug Black 0.335" (8.50mm)
