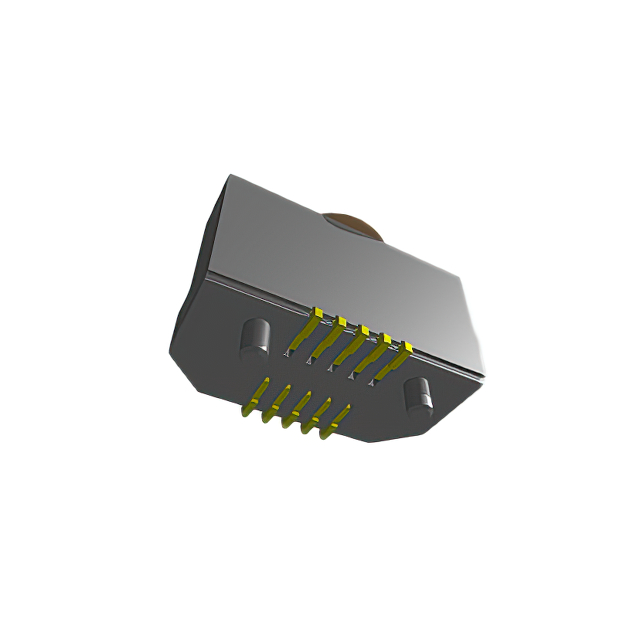

LSS-105-01-L-DV-A-K-TR - LSS-105-01-L-DV-A-K-TR

LSS-105-01-L-DV-A-K-TR

Active
Samtec Inc.

MEZZANINE CONN, HERMA, 10POS, 2ROW, SMT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket StripDatasheet+2
LSS-105-01-L-DV-A-K-TR - LSS-105-01-L-DV-A-K-TR

LSS-105-01-L-DV-A-K-TR

Active
Samtec Inc.

MEZZANINE CONN, HERMA, 10POS, 2ROW, SMT ROHS COMPLIANT: YES

Deep-Dive with AI

Documents0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket StripDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationLSS-105-01-L-DV-A-K-TR
Connector TypeSelf Mating, Non-Gendered, Hermaphroditic
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPick and Place, Board Guide
Height Above Board0.169 in
Height Above Board4.3 mm
Mated Stacking Heights7 mm, 6 mm, 9 mm
Mounting TypeSurface Mount
Number of Positions10
Number of Rows2
Pitch [x]0.64 mm
Pitch [x]0.025 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 4.70
25$ 4.25
50$ 3.95
100$ 3.76
Digi-Reel® 1$ 4.70
25$ 4.25
50$ 3.95
100$ 3.76
Tape & Reel (TR) 775$ 3.10
1550$ 2.90
NewarkEach (Supplied on Cut Tape) 1$ 4.04
10$ 3.74
25$ 3.59
50$ 3.41
100$ 3.10
250$ 2.93
500$ 2.76

Description

General part information

LSS-105 Series

10 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
