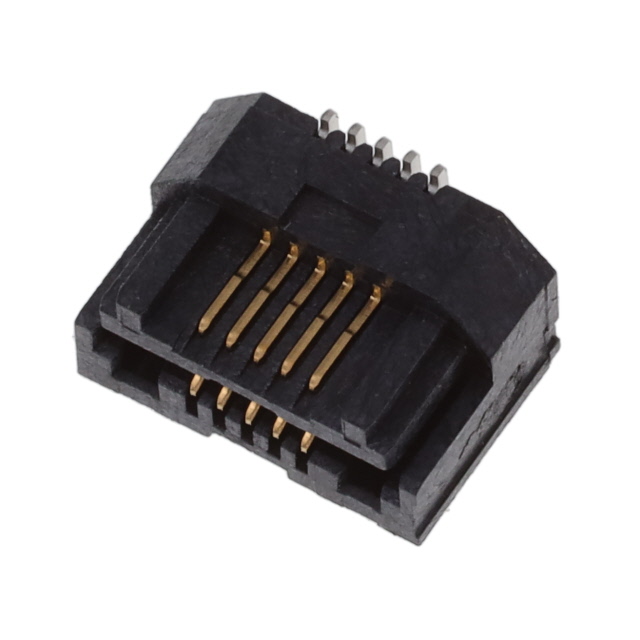

LSS-105-03-L-DV-A

Active

Samtec Inc.

CONN SELF-MATE 10POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLSS Datasheet Datasheet +1

LSS-105-03-L-DV-A

Active

Samtec Inc.

CONN SELF-MATE 10POS SMD GOLD

Deep-Dive with AI

DocumentsLSS Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSS-105-03-L-DV-A

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	5.3 mm
Height Above Board	0.209 in
Mated Stacking Heights	8 mm, 10 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

LSS-105 Series

Part	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Positions	Contact Finish	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Height Above Board	Height Above Board
Samtec Inc. LSS-105-02-L-DV-A-K-TR	Board Guide Pick and Place	Surface Mount	10 Áin	0.25 Ám	9 mm 10 mm 12 mm	10	Gold	0.287 in	7.3 mm	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2
Samtec Inc. LSS-105-01-L-DV-A	Board Guide	Surface Mount	10 Áin	0.25 Ám	6 mm 7 mm 9 mm	10	Gold			0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2	0.169 in	4.3 mm
Samtec Inc. LSS-105-01-L-DV-A-K-TR	Board Guide Pick and Place	Surface Mount	10 Áin	0.25 Ám	6 mm 7 mm 9 mm	10	Gold			0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2	0.169 in	4.3 mm
Samtec Inc. LSS-105-03-F-DV-A	Board Guide	Surface Mount	3 Áin	0.076 Ám	7 mm 8 mm 10 mm	10	Gold			0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2	0.209 in	5.3 mm
Samtec Inc. LSS-105-03-L-DV-LC-K-TR	Board Lock Pick and Place	Surface Mount	10 Áin	0.25 Ám	7 mm 8 mm 10 mm	10	Gold			0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2	0.209 in	5.3 mm
Samtec Inc. LSS-105-02-L-DV-A-TR	Board Guide	Surface Mount	10 Áin	0.25 Ám	9 mm 10 mm 12 mm	10	Gold	0.287 in	7.3 mm	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2
Samtec Inc. LSS-105-01-F-DV-A	Board Guide	Surface Mount	3 Áin	0.076 Ám	6 mm 7 mm 9 mm	10	Gold			0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2	0.169 in	4.3 mm
Samtec Inc. LSS-105-03-L-DV-A	Board Guide	Surface Mount	10 Áin	0.25 Ám	7 mm 8 mm 10 mm	10	Gold			0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2	0.209 in	5.3 mm
Samtec Inc. LSS-105-03-F-DV-A-K	Board Guide Pick and Place	Surface Mount	3 Áin	0.076 Ám	7 mm 8 mm 10 mm	10	Gold			0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	2	0.209 in	5.3 mm
