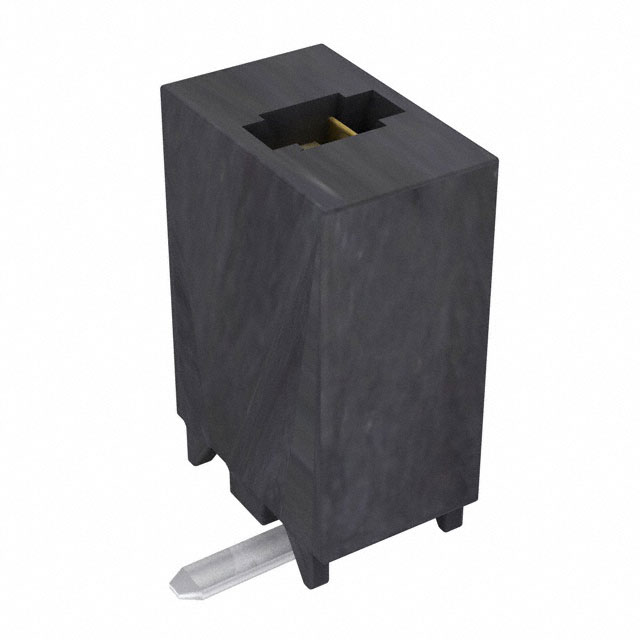

MMS-101-02-L-SV

Active

Samtec Inc.

CONN RCPT 1POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 1POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	MMS-101-02-L-SV

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Termination	Insulation Material	Number of Positions	Number of Rows	Fastening Type	Contact Type	Style	Insulation Color	Connector Type	Contact Material	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post
Samtec Inc. MMS-101-02-L-SV	Gold	All	0.079 in	2 mm	Surface Mount	Solder	Liquid Crystal Polymer (LCP)	1	1	Push-Pull	Female Socket	Board to Board Cable	Black	Receptacle	Phosphor Bronze	0.177 in	4.5 mm	3.9 A	Tin	Square	10 çin	0.25 çm	-55 °C	125 °C
Samtec Inc. MMS-101-01-L-SV	Gold	All			Through Hole	Solder	Liquid Crystal Polymer (LCP)	1	1	Push-Pull	Female Socket	Board to Board Cable	Black	Receptacle	Phosphor Bronze	0.175 in	4.45 mm	3.9 A	Tin	Square	10 çin	0.25 çm	-55 °C	125 °C	2.92 mm	0.115 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
