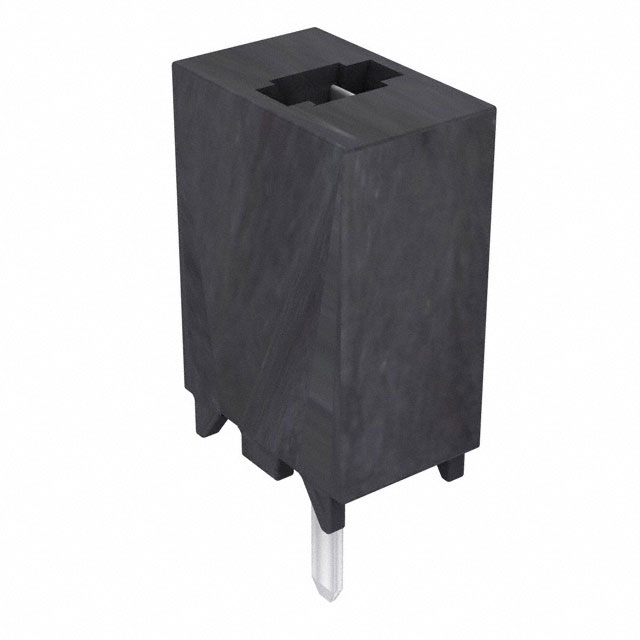

MMS-101-01-L-SV
ActiveSamtec Inc.
CONN RCPT 1POS GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
MMS-101-01-L-SV
ActiveSamtec Inc.
CONN RCPT 1POS GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMS-101-01-L-SV |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 2.92 mm |
| Contact Length - Post | 0.115 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3.9 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.45 mm |
| Insulation Height | 0.175 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.37 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.26 | |||
| 5000 | $ 0.23 | |||
| 10000 | $ 0.22 | |||
Description
General part information
MMS-101 Series
1 Position Receptacle Connector Through Hole Gold
