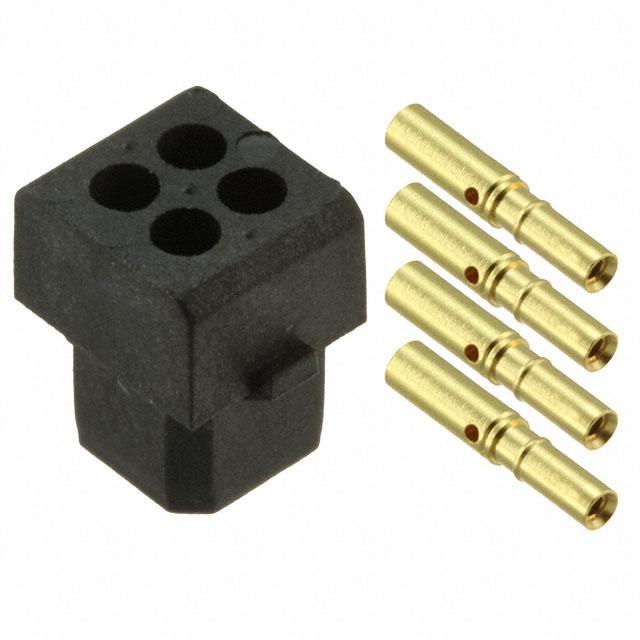

M80-8440445

Active

Harwin Inc.

2+2 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

2+2 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Row Spacing	Row Spacing	Connector Type	Wire Type	Cable Termination	Fastening Type	Pitch [x]	Pitch [x]	Contact Finish	Color	Number of Positions
Harwin Inc. M80-8442042	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	20
Harwin Inc. M80-8441445	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	14
Harwin Inc. M80-8440845	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	8
Harwin Inc. M80-8440445	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	4
Harwin Inc. M80-8441042	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	10
Harwin Inc. M80-8440645	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	6
Harwin Inc. M80-8441845	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
