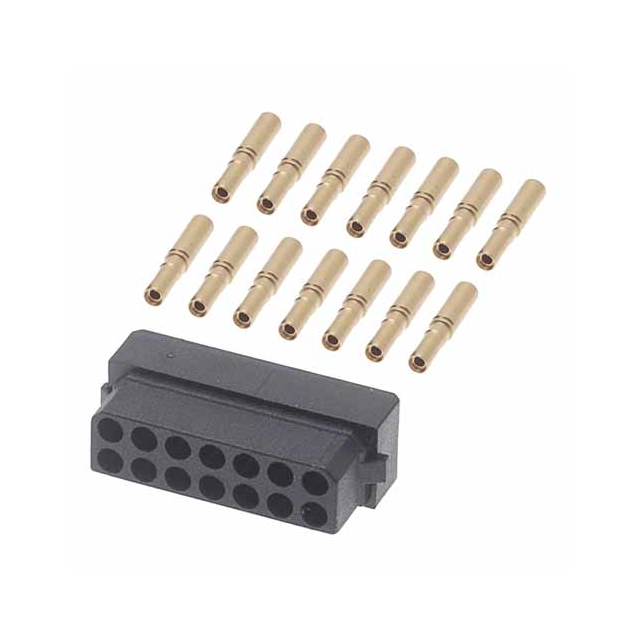

M80-8441445

Active

Harwin Inc.

BOARD CONNECTOR, 14 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, SOCKET,

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 14 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, SOCKET,

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Row Spacing	Row Spacing	Connector Type	Wire Type	Cable Termination	Fastening Type	Pitch [x]	Pitch [x]	Contact Finish	Color	Number of Positions
Harwin Inc. M80-8442042	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	20
Harwin Inc. M80-8441445	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	14
Harwin Inc. M80-8440845	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	8
Harwin Inc. M80-8440445	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	4
Harwin Inc. M80-8441042	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	10
Harwin Inc. M80-8440645	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	6
Harwin Inc. M80-8441845	0.3 Ám	11.8 Áin	2	Free Hanging (In-Line)	24 AWG	28 AWG	Female Socket	2 mm	0.079 in	Receptacle	Discrete	Crimp	Locking Ramp	0.079 in	2 mm	Gold	Black	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
