Part	Type	For Use With/Related Products	Color	Style	Number of Positions	Material - Insulation	Stripping Length	Number of Levels	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Voltage - IEC	Current - IEC	Termination Style	Terminal Width	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG
WAGO Corporation 285-435	Cross Connection Terminal Block	Terminal Blocks	Gray	Flat Pins	4
WAGO Corporation 285-407	Pick Off Terminal Block		Gray		2
WAGO Corporation 285-135	Feed Through		Gray		2	Nylon 6/6 PA66 Polyamide	25 mm	1	6 mm²	35 mm²	1000 V	125 A	Push In Spring	16 mm	10 AWG	2 AWG
WAGO Corporation 285-137	Earth Ground		Green Yellow		2	Nylon 6/6 PA66 Polyamide	25 mm	1	6 mm²	35 mm²			Push In Spring	16 mm	10 AWG	2 AWG
WAGO Corporation 285-197	Earth Ground		Green Yellow		2	Nylon 6/6 PA66 Polyamide	35 mm	1	25 mm²	95 mm²			Push In Spring	25 mm			4/0-4 AWG
WAGO Corporation 285-150	Feed Through		Gray		2	Nylon 6/6 PA66 Polyamide	30 mm	1	10 mm²	50 mm²	1000 V	150 A	Push In Spring	20 mm			1/0-8 AWG

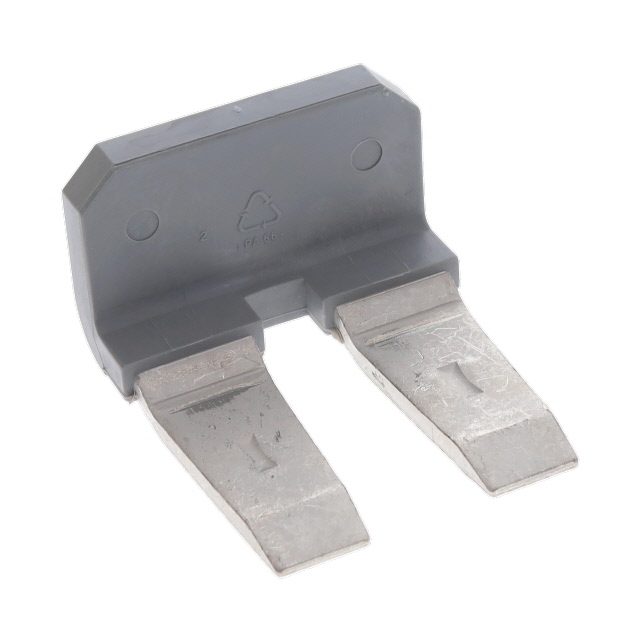

WAGO Corporation 285-495	Cross Connection Terminal Block	Terminal Blocks	Gray	Flat Pins - Angled	2
WAGO Corporation 285-195	Feed Through		Gray		2	Nylon 6/6 PA66 Polyamide	35 mm	1	25 mm²	95 mm²	1.5 kV	232 A	Push In Spring	25 mm			4/0-4 AWG
WAGO Corporation 285-635	Feed Through		Gray		2	Nylon 6/6 PA66 Polyamide	23 mm	1	6 mm²	35 mm²	1000 V	125 A	Push In Spring	16 mm	8 AWG	2 AWG
