285-195

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 4 AWG, 0000 AWG, 95 MM², CLAMP, 232 A

Find alt

Alpha

285-195

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 4 AWG, 0000 AWG, 95 MM², CLAMP, 232 A

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

285 Series

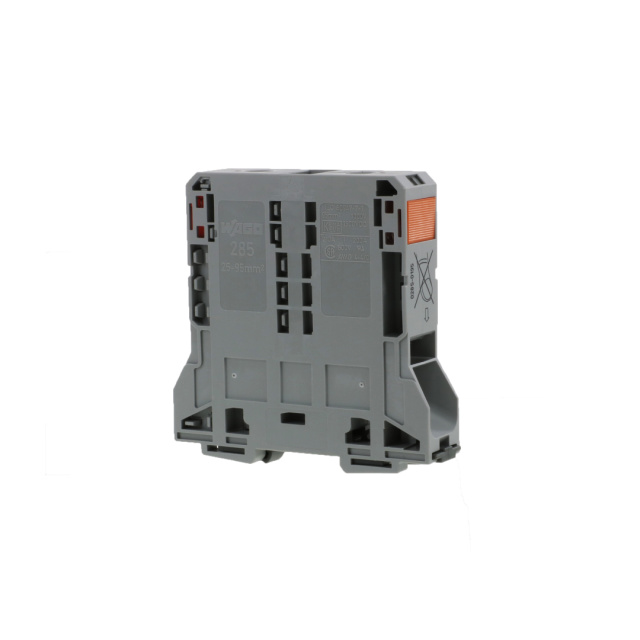

The 285-195 is a 2-position gray DIN 35 x 15 rail-mount through Terminal Block with POWER CAGE CLAMP® connection technology. It is made with the polyamide 66 (PA 66) insulator. It features horizontal design and side marking.

Technical Specifications

Parameters and characteristics for this part

Specification	285-195

Color	Gray
Current - IEC	232 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length	35 mm
Terminal Width	25 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	1.5 kV
Wire Gauge or Range - AWG	4/0-4 AWG
Wire Gauge or Range - mm² (Maximum)	95 mm²
Wire Gauge or Range - mm² (Minimum)	25 mm²

285 Series

Part	Type	For Use With/Related Products	Color	Style	Number of Positions	Material - Insulation	Stripping Length	Number of Levels	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Voltage - IEC	Current - IEC	Termination Style	Terminal Width	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG
WAGO Corporation 285-435	Cross Connection Terminal Block	Terminal Blocks	Gray	Flat Pins	4
WAGO Corporation 285-407	Pick Off Terminal Block		Gray		2
WAGO Corporation 285-135	Feed Through		Gray		2	Nylon 6/6 PA66 Polyamide	25 mm	1	6 mm²	35 mm²	1000 V	125 A	Push In Spring	16 mm	10 AWG	2 AWG
WAGO Corporation 285-137	Earth Ground		Green Yellow		2	Nylon 6/6 PA66 Polyamide	25 mm	1	6 mm²	35 mm²			Push In Spring	16 mm	10 AWG	2 AWG
WAGO Corporation 285-197	Earth Ground		Green Yellow		2	Nylon 6/6 PA66 Polyamide	35 mm	1	25 mm²	95 mm²			Push In Spring	25 mm			4/0-4 AWG
WAGO Corporation 285-150	Feed Through		Gray		2	Nylon 6/6 PA66 Polyamide	30 mm	1	10 mm²	50 mm²	1000 V	150 A	Push In Spring	20 mm			1/0-8 AWG
WAGO Corporation 285-495	Cross Connection Terminal Block	Terminal Blocks	Gray	Flat Pins - Angled	2
WAGO Corporation 285-195	Feed Through		Gray		2	Nylon 6/6 PA66 Polyamide	35 mm	1	25 mm²	95 mm²	1.5 kV	232 A	Push In Spring	25 mm			4/0-4 AWG
WAGO Corporation 285-635	Feed Through		Gray		2	Nylon 6/6 PA66 Polyamide	23 mm	1	6 mm²	35 mm²	1000 V	125 A	Push In Spring	16 mm	8 AWG	2 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

285-195 | Datasheet
