134-1000-034
ActiveCinch Connectivity Solutions Johnson

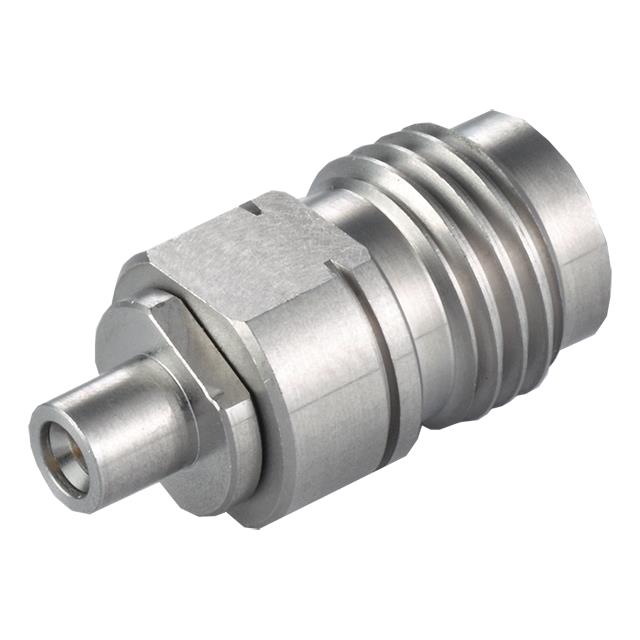

ADAPTER ASSEMBLY, 1.85MM FEMALE
Deep-Dive with AI
Search across all available documentation for this part.
134-1000-034
ActiveCinch Connectivity Solutions Johnson
ADAPTER ASSEMBLY, 1.85MM FEMALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 134-1000-034 |
|---|---|
| Adapter Series | SMP3 |
| Adapter Series | 1.85 mm |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMP3 Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, 1.85mm Jack |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 67 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500, 100 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
134-1000 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Style | Center Contact Plating | Impedance | Frequency - Max [Max] | Fastening Type | Dielectric Material | Center Contact Material | Mounting Type | Conversion Type | Convert From (Adapter End) | Adapter Series | Adapter Series | Center Gender | Adapter Type | Mating Cycles | Convert To (Adapter End) | Body Material | Convert To (Adapter End) | Body Finish | Convert From (Adapter End) | Adapter Series [Min] | Adapter Series [Max] | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 40 GHz | Snap-On Threaded | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | SMP3 Plug Male Pin | 2.92 mm | SMP3 | Male to Male | Plug to Plug | 100 500 | 2.92mm (OS-2.9) Plug Male Pin | Stainless Steel | ||||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 40 GHz | Snap-On Threaded | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | SMP3 Jack Female Socket | 2.92 mm | SMP3 | Female to Female | Jack to Jack | 100 500 | OS-2.9 Jack Female Socket | Beryllium Copper Stainless Steel | 2.92 mm | Gold | ||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 50 GHz | Snap-On Threaded | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | SMP3 Plug Male Pin | 2.4 mm | SMP3 | Male to Male | Plug to Plug | 100 500 | 2.4mm (APC-2.4 OS-50) Plug Male Pin | Stainless Steel | ||||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 46.5 GHz | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | Plug Male Pin | Male to Male | Plug to Plug | 500 | 2.92mm (OS-2.9) Plug Male Pin | Stainless Steel | 1.85 mm | 1.85 mm | 2.92 mm | 0.6 dB | |||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 46.5 GHz | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | Plug Male Pin | Plug to Jack | 500 | OS-2.9 Jack Female Socket | Stainless Steel | 2.92 mm | 1.85 mm | 1.85 mm | 2.92 mm | 0.6 dB | |||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 46.5 GHz | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | 1.85mm Jack Female Socket | Plug to Jack | 500 | 2.92mm (OS-2.9) Plug Male Pin | Stainless Steel | 1.85 mm | 2.92 mm | 0.6 dB | |||||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 40 GHz | Snap-On Threaded | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | SMP3 Jack Female Socket | 2.92 mm | SMP3 | Plug to Jack | 100 500 | 2.92mm (OS-2.9) Plug Male Pin | Beryllium Copper Stainless Steel | Gold | ||||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 67 GHz | Snap-On Threaded | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | SMP3 Jack Female Socket | 1.85 mm | SMP3 | Plug to Jack | 100 500 | 1.85mm Plug Male Pin | Beryllium Copper Stainless Steel | Gold | ||||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 67 GHz | Snap-On Threaded | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | SMP3 Plug Male Pin | 1.85 mm | SMP3 | Plug to Jack | 100 500 | 1.85mm Jack Female Socket | Stainless Steel | |||||||
Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | Straight | Gold | 50 Ohms | 50 GHz | Snap-On Threaded | Polyetherimide (PEI) | Beryllium Copper | Free Hanging (In-Line) | Between Series | SMP3 Jack Female Socket | 2.4 mm | SMP3 | Female to Female | Jack to Jack | 100 500 | Beryllium Copper Stainless Steel | 2.4 mm | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 427.23 | |
| 10 | $ 395.90 | |||
| 25 | $ 381.66 | |||
Description
General part information
134-1000 Series
Adapter Coaxial Connector SMP3 Plug, Male Pin To 1.85mm Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
