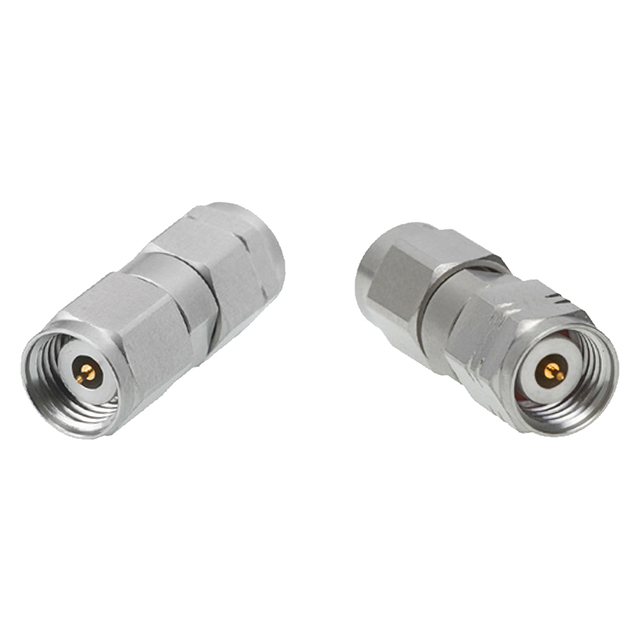

Specification	134-1000-023

Adapter Series Size	2.92 mm, 1.85 mm
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male
Conversion Type	Between Series
Convert From (Adapter End) Plug Size	1.85 mm
Convert From (Adapter End) Type	Male Pin
Convert To (Adapter End)	Plug, (OS-2.9) Plug, Male Pin
Convert To (Adapter End) Model	OS-2.9
Convert To (Adapter End) Precision	2.92 mm
Convert To (Adapter End) Size	2.92 mm
Convert To (Adapter End) Type	Male Pin, Plug
Dielectric Material	Polyetherimide (PEI)
Fastening Type	Threaded
Frequency - Max	46.5 GHz
Impedance	50 Ohm
Insertion Loss	0.6 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

134-1000 Series

Part	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles (Min)	Mating Cycles (Max)	Body Material	Dielectric Material	Convert From (Adapter End)	Style	Convert To (Adapter End) Precision	Convert To (Adapter End)	Impedance	Adapter Type	Frequency - Max	Conversion Type	Adapter Series	Adapter Series Size	Mounting Type	Center Contact Plating	Center Gender	Fastening Type	Convert To (Adapter End) Type	Convert To (Adapter End) Model	Convert To (Adapter End) Size	Convert To (Adapter End) Gender	Body Finish	Convert From (Adapter End) Plug Size	Convert From (Adapter End) Type	Mating Cycles	Insertion Loss	Convert From (Adapter End) Jack Size
Cinch Connectivity Solutions Johnson 134-1000-037	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Beryllium Copper	Polyetherimide (PEI)	Female Socket SMP3 Jack	Straight	2.4 mm	(APC-2.4 OS-50) Plug Male Pin	50 Ohm	Plug to Jack	50 GHz	Between Series	SMP3	2.4 mm	Free Hanging (In-Line)	Gold	Female Male	Snap-On Threaded
Cinch Connectivity Solutions Johnson 134-1000-040	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Stainless Steel	Polyetherimide (PEI)	Male Pin SMP3 Plug	Straight	2.92 mm	(OS-2.9) Plug Male Pin Plug	50 Ohm	Plug to Plug	40 Gbps	Between Series	SMP3	2.92 mm	Free Hanging (In-Line)	Gold	Male	Snap-On Threaded	Male Pin Plug	OS-2.9	2.92 mm
Cinch Connectivity Solutions Johnson 134-1000-043	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Beryllium Copper Stainless Steel	Polyetherimide (PEI)	Female Socket SMP3 Jack	Straight		Female Socket Jack	50 Ohm	Jack to Jack	40 Gbps	Between Series	SMP3	2.92 mm	Free Hanging (In-Line)	Gold	Female	Snap-On Threaded	Jack	OS-2.9	2.92 mm	Female Socket	Gold
Cinch Connectivity Solutions Johnson 134-1000-036	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Stainless Steel	Polyetherimide (PEI)	Male Pin SMP3 Plug	Straight	2.4 mm	(APC-2.4 OS-50) Plug Male Pin	50 Ohm	Plug to Plug	50 GHz	Between Series	SMP3	2.4 mm	Free Hanging (In-Line)	Gold	Male	Snap-On Threaded
Cinch Connectivity Solutions Johnson 134-1000-023	Beryllium Copper	-65 °C	165 °C			Stainless Steel	Polyetherimide (PEI)		Straight	2.92 mm	(OS-2.9) Plug Male Pin Plug	50 Ohm	Plug to Plug	46.5 GHz	Between Series		1.85 mm 2.92 mm	Free Hanging (In-Line)	Gold	Male	Threaded	Male Pin Plug	OS-2.9	2.92 mm			1.85 mm	Male Pin	500 cycles	0.6 dB
Cinch Connectivity Solutions Johnson 134-1000-022	Beryllium Copper	-65 °C	165 °C			Stainless Steel	Polyetherimide (PEI)		Straight		Female Socket Jack	50 Ohm	Plug to Jack	46.5 GHz	Between Series		1.85 mm 2.92 mm	Free Hanging (In-Line)	Gold	Female Male	Threaded	Jack	OS-2.9	2.92 mm	Female Socket		1.85 mm	Male Pin	500 cycles	0.6 dB
Cinch Connectivity Solutions Johnson 134-1000-021	Beryllium Copper	-65 °C	165 °C			Stainless Steel	Polyetherimide (PEI)		Straight	2.92 mm	(OS-2.9) Plug Male Pin Plug	50 Ohm	Plug to Jack	46.5 GHz	Between Series		1.85 mm 2.92 mm	Free Hanging (In-Line)	Gold	Female Male	Threaded	Male Pin Plug	OS-2.9	2.92 mm				Female Socket	500 cycles	0.6 dB	1.85 mm
Cinch Connectivity Solutions Johnson 134-1000-041	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Beryllium Copper Stainless Steel	Polyetherimide (PEI)	Female Socket SMP3 Jack	Straight	2.92 mm	(OS-2.9) Plug Male Pin Plug	50 Ohm	Plug to Jack	40 Gbps	Between Series	SMP3	2.92 mm	Free Hanging (In-Line)	Gold	Female Male	Snap-On Threaded	Male Pin Plug	OS-2.9	2.92 mm		Gold
Cinch Connectivity Solutions Johnson 134-1000-033	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Beryllium Copper Stainless Steel	Polyetherimide (PEI)	Female Socket SMP3 Jack	Straight	1.85 mm	Male Pin Plug	50 Ohm	Plug to Jack	67 GHz	Between Series	SMP3	1.85 mm	Free Hanging (In-Line)	Gold	Female Male	Snap-On Threaded					Gold
Cinch Connectivity Solutions Johnson 134-1000-034	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Stainless Steel	Polyetherimide (PEI)	Male Pin SMP3 Plug	Straight			50 Ohm	Plug to Jack	67 GHz	Between Series	SMP3	1.85 mm	Free Hanging (In-Line)	Gold	Female Male	Snap-On Threaded	1.85mm Jack			Female Socket
