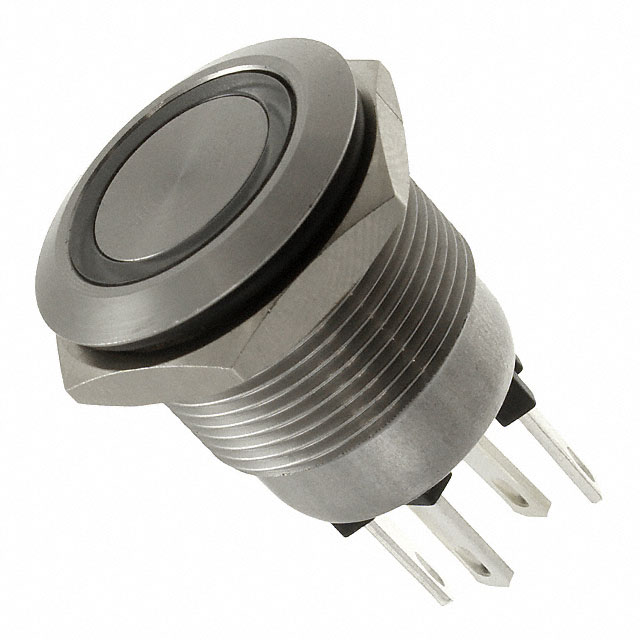

MPI002/28/D5

Active

BULGIN LIMITED

VANDAL RESISTANT SWITCH, SPST-NO, CHROME, CONNECTOR, 50 MA ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MPI002/28/D5

Active

BULGIN LIMITED

VANDAL RESISTANT SWITCH, SPST-NO, CHROME, CONNECTOR, 50 MA ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPI002/28/D5

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	50 mA
Electrical Life	35000 Cycles
Features	Stainless Steel
Illumination Type, Color [custom]	Blue/Green
Illumination Type, Color [custom]	LED
Illumination Voltage (Nominal)	3.6 VDC
Ingress Protection	IP66
Mechanical Life	750000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

MPI002 Series

Part	Electrical Life	Mounting Type	Actuator Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function	Ingress Protection	Mechanical Life	Termination Style	Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Illumination Voltage (Nominal)	Features	Color - Actuator/Cap	Circuit	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Illumination Type, Color
BULGIN LIMITED MPI002/28/D5	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	3.6 VDC	Stainless Steel	Silver	SPST-NO	Blue/Green	LED
BULGIN LIMITED MPI002/28/AM/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			Amber LED
BULGIN LIMITED MPI002/FL/GN/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Wire Leads	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			Green LED
BULGIN LIMITED MPI002/28/RD/12	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	12 VDC	Stainless Steel	Silver	SPST-NO			LED Red
BULGIN LIMITED MPI002/TE/BL/6	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Screw Terminal	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	6 V	Stainless Steel	Silver	SPST-NO			Blue LED
BULGIN LIMITED MPI002/RP/RD/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Solder Lug	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			LED Red
BULGIN LIMITED MPI002/TE/AM/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Screw Terminal	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			Amber LED
BULGIN LIMITED MPI002/28/WH	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	3.6 VDC	Stainless Steel	Silver	SPST-NO			LED White
BULGIN LIMITED MPI002/TE/GN/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Screw Terminal	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			Green LED
BULGIN LIMITED MPI002/28/BL/6	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	6 V	Stainless Steel	Silver	SPST-NO			Blue LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.37
		10	$ 46.75
		25	$ 44.57
		50	$ 41.58
		100	$ 39.95
		250	$ 37.24
Newark	Each	1	$ 56.09
		10	$ 51.15
		25	$ 48.69
		50	$ 45.40
		100	$ 43.59
		250	$ 40.63
		500	$ 38.65

Description

General part information

MPI002 Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
