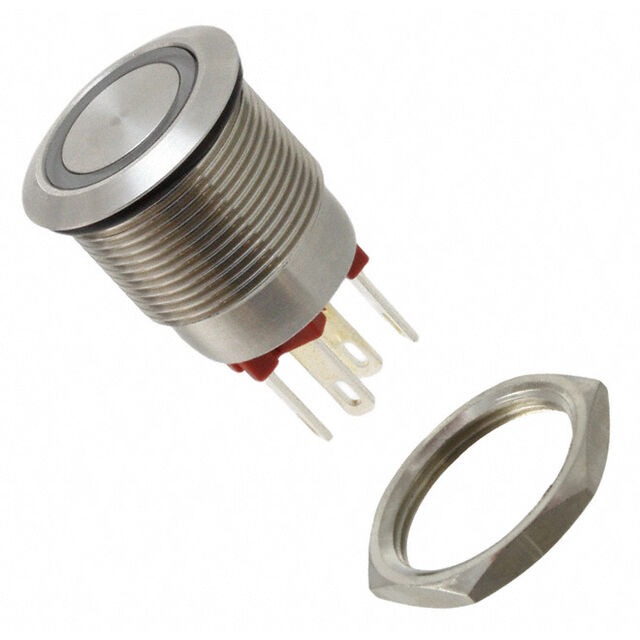

MPI002/28/RD/12

Active

BULGIN LIMITED

SWITCH PUSH SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPI002/28/RD/12

Active

BULGIN LIMITED

SWITCH PUSH SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPI002/28/RD/12

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	50 mA
Electrical Life	35000 Cycles
Features	Stainless Steel
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP66
Mechanical Life	750000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

MPI002 Series

Part	Electrical Life	Mounting Type	Actuator Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function	Ingress Protection	Mechanical Life	Termination Style	Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Illumination Voltage (Nominal)	Features	Color - Actuator/Cap	Circuit	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Illumination Type, Color
BULGIN LIMITED MPI002/28/D5	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	3.6 VDC	Stainless Steel	Silver	SPST-NO	Blue/Green	LED
BULGIN LIMITED MPI002/28/AM/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			Amber LED
BULGIN LIMITED MPI002/FL/GN/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Wire Leads	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			Green LED
BULGIN LIMITED MPI002/28/RD/12	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	12 VDC	Stainless Steel	Silver	SPST-NO			LED Red
BULGIN LIMITED MPI002/TE/BL/6	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Screw Terminal	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	6 V	Stainless Steel	Silver	SPST-NO			Blue LED
BULGIN LIMITED MPI002/RP/RD/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Solder Lug	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			LED Red
BULGIN LIMITED MPI002/TE/AM/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Screw Terminal	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			Amber LED
BULGIN LIMITED MPI002/28/WH	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	3.6 VDC	Stainless Steel	Silver	SPST-NO			LED White
BULGIN LIMITED MPI002/TE/GN/24	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Screw Terminal	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	24 V	Stainless Steel	Silver	SPST-NO			Green LED
BULGIN LIMITED MPI002/28/BL/6	35000 Cycles	Panel Mount Front	Button Flush Round	24 V	19.2 mm	50 mA	Off-Mom	IP66	750000 Cycles	Quick Connect - 0.110" (2.8mm)	Anti-Vandal Illuminated	70 °C	-30 ░C	No Marking	6 V	Stainless Steel	Silver	SPST-NO			Blue LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.77
		10	$ 38.01
		25	$ 36.24
		50	$ 33.81
		100	$ 32.49
		250	$ 30.28
Newark	Each	1	$ 46.25

Description

General part information

MPI002 Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources
