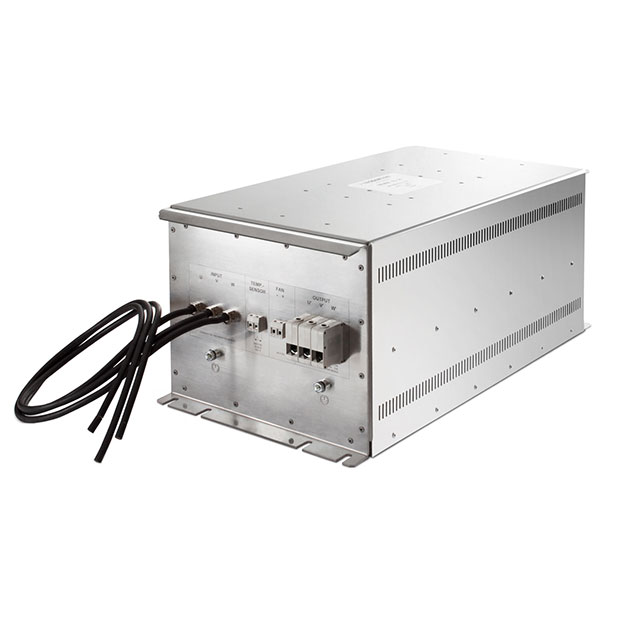

FN5020-55-34
ObsoleteTE Connectivity Raychem Cable Protection
LINE FILTER 55A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
FN5020-55-34
ObsoleteTE Connectivity Raychem Cable Protection
LINE FILTER 55A CHASSIS MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN5020-55-34 |
|---|---|
| Applications | Regenerative Motor Drive |
| Configuration | Single Stage |
| Current | 55 A |
| Filter Type | Three Phase (Delta) |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Wire Leads, Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 288 V |
| Voltage - Rated AC (Phase to Phase) | 500 V |
FN5020 Series
| Part | Voltage - Rated AC (Phase to Ground/Neutral) | Current | Operating Temperature [custom] | Voltage - Rated AC (Phase to Phase) | Mounting Type | Termination Style | Configuration | Applications | Filter Type |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 288 V | 75 A | -25 °C 100 °C | 500 V | Chassis Mount | Terminal Block Wire Leads | Single Stage | Regenerative Motor Drive | Three Phase (Delta) |
TE Connectivity Raychem Cable Protection | 288 V | 120 A | -25 °C 100 °C | 500 V | Chassis Mount | Terminal Block Wire Leads | Single Stage | Regenerative Motor Drive | Three Phase (Delta) |
TE Connectivity Raychem Cable Protection | 288 V | 55 A | -25 °C 100 °C | 500 V | Chassis Mount | Terminal Block Wire Leads | Single Stage | Regenerative Motor Drive | Three Phase (Delta) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FN5020 Series
Three Phase (Delta) EMC/EMI Line Filter 55 A Single Stage Terminal Block, Wire Leads
Documents
Technical documentation and resources
No documents available
